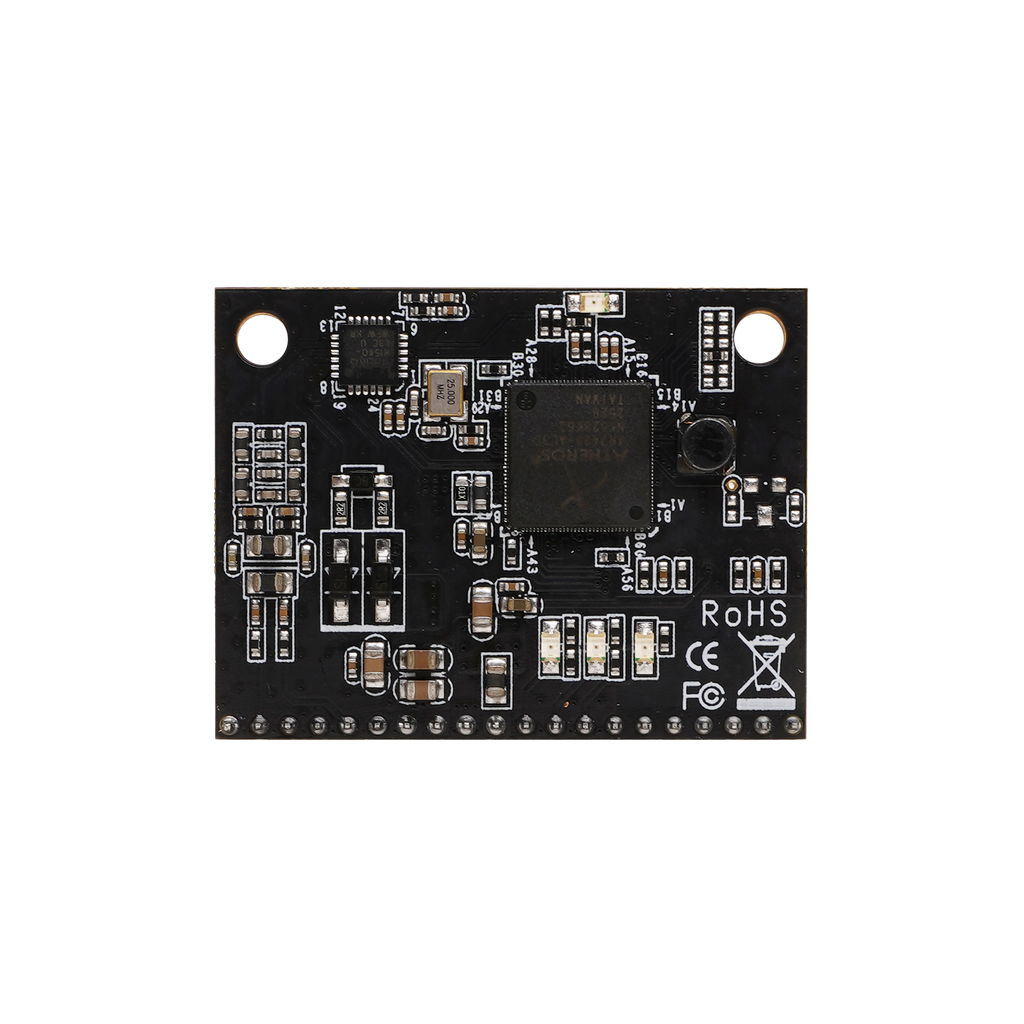

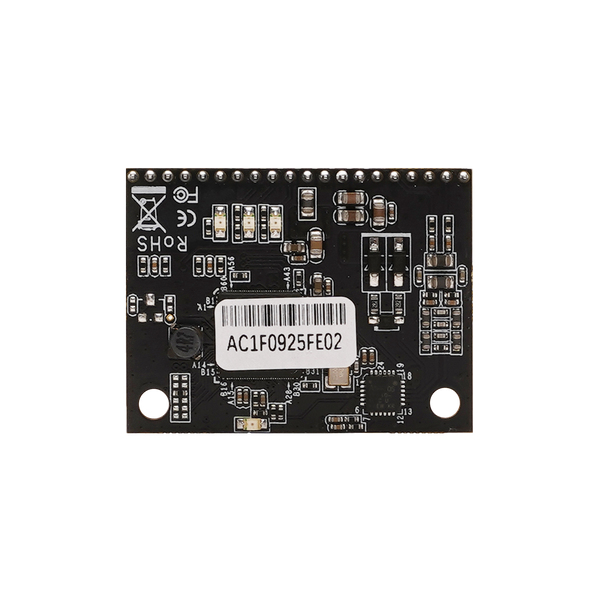

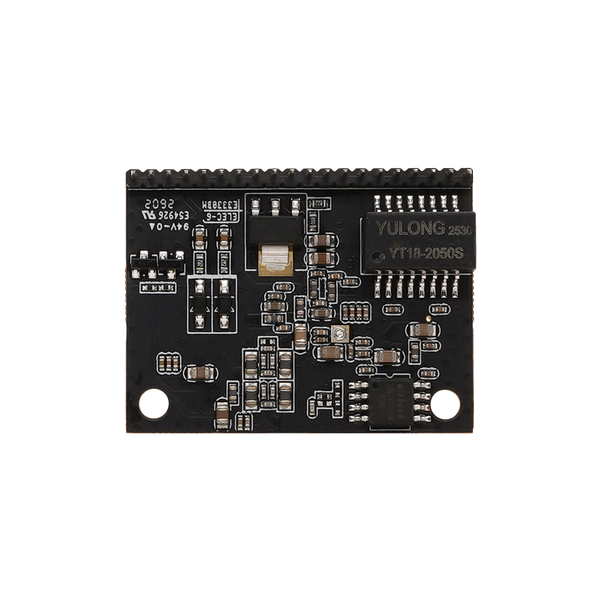

WisLink PLC LX200V30
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description

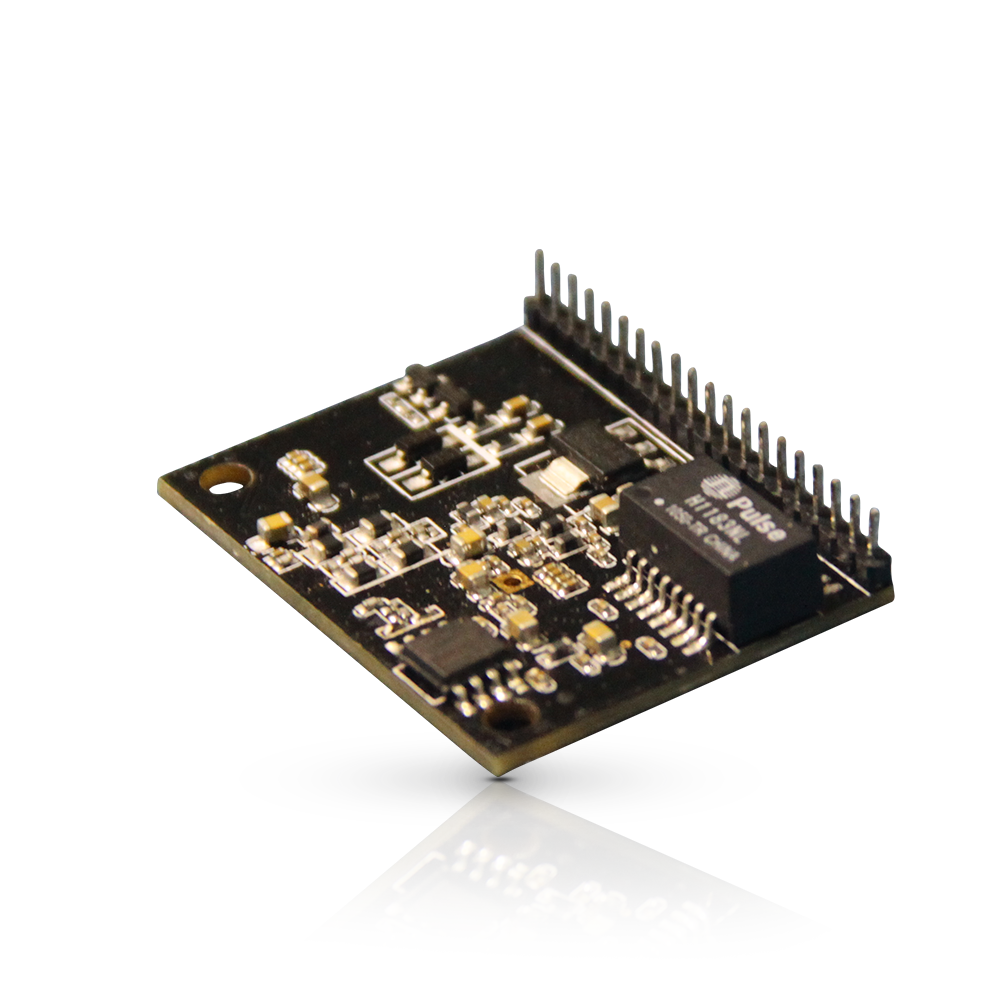

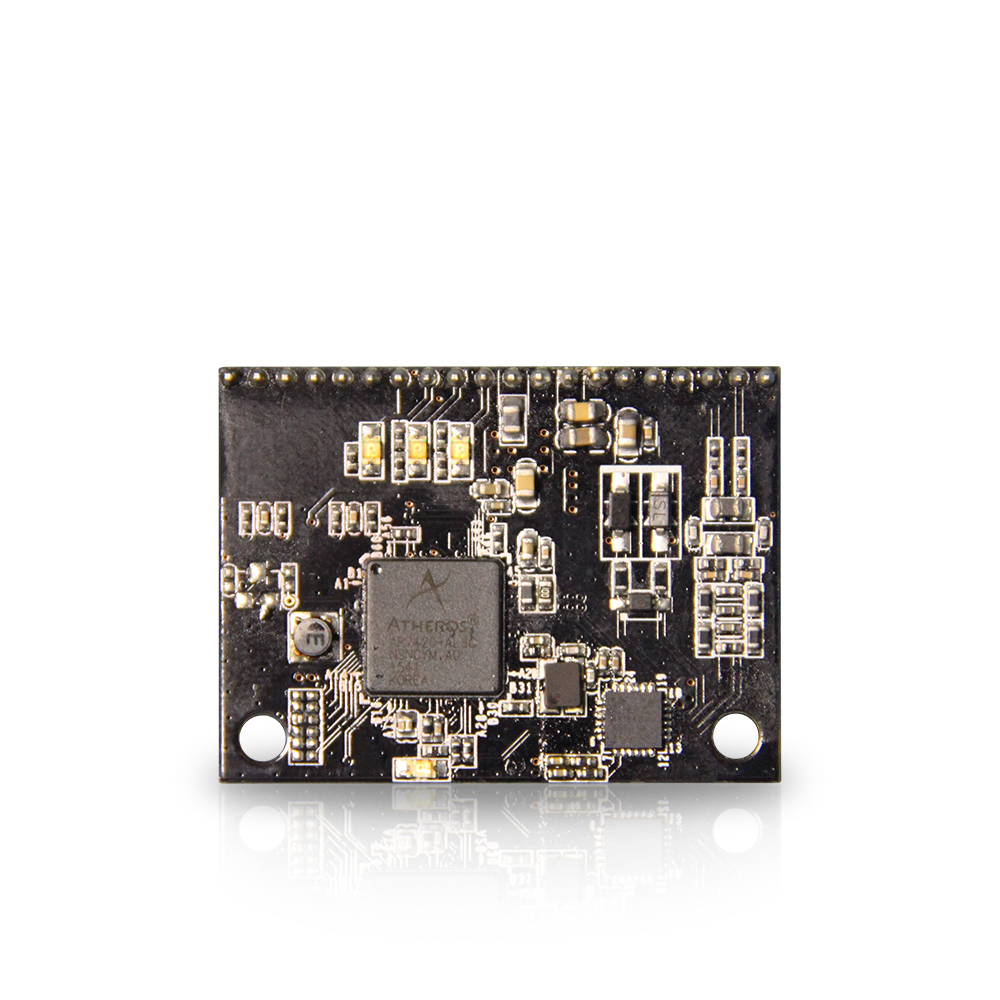

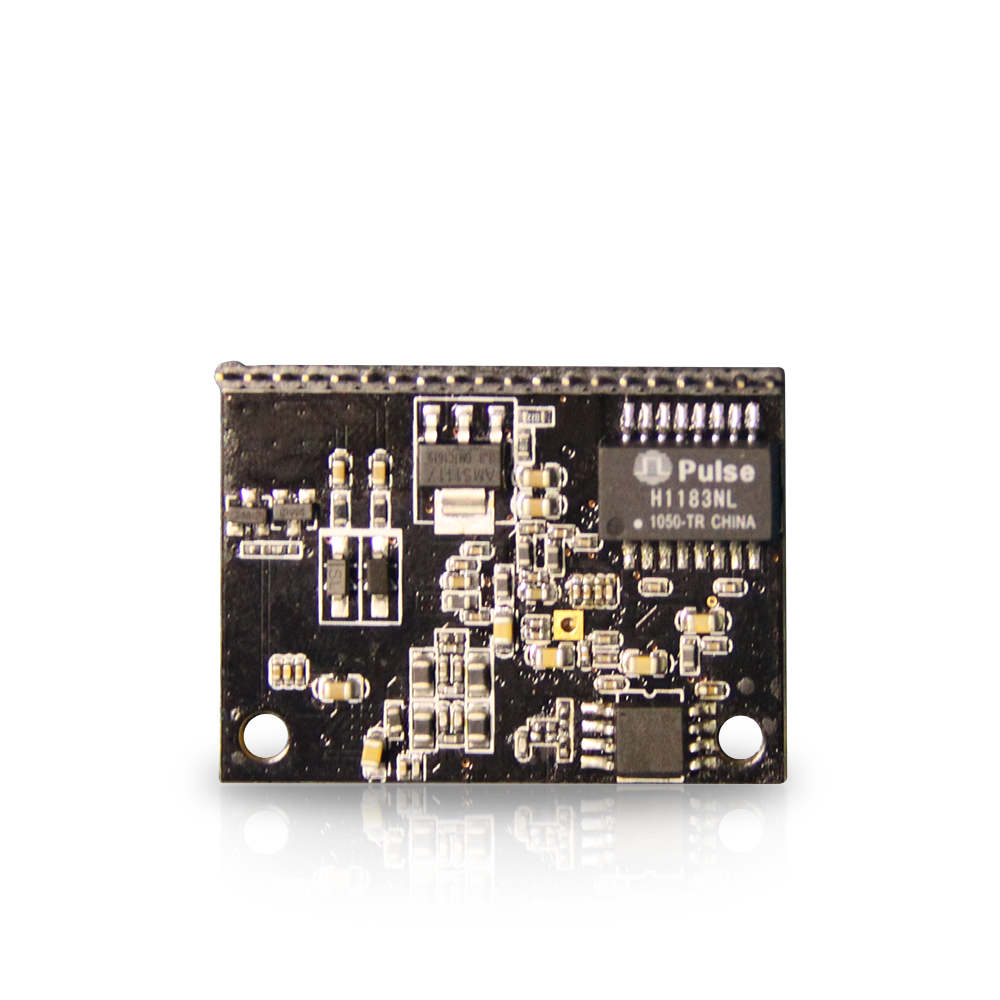

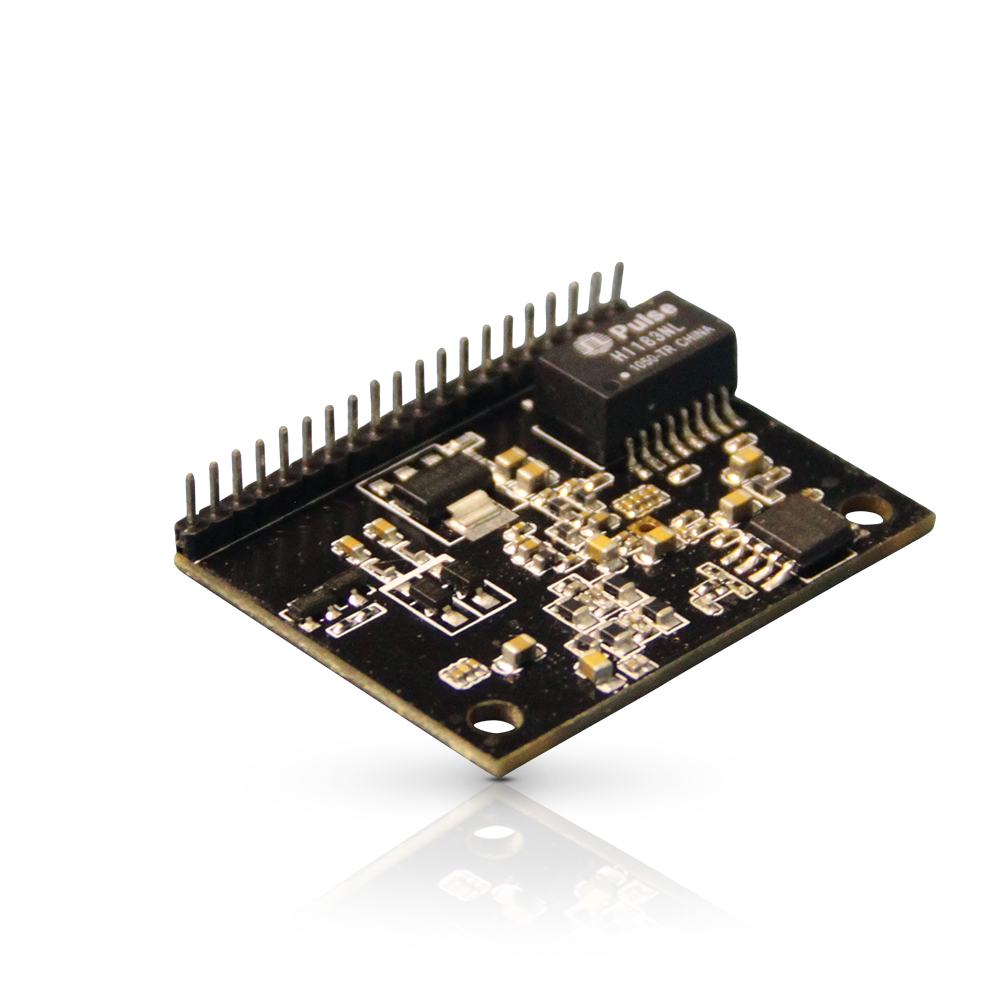

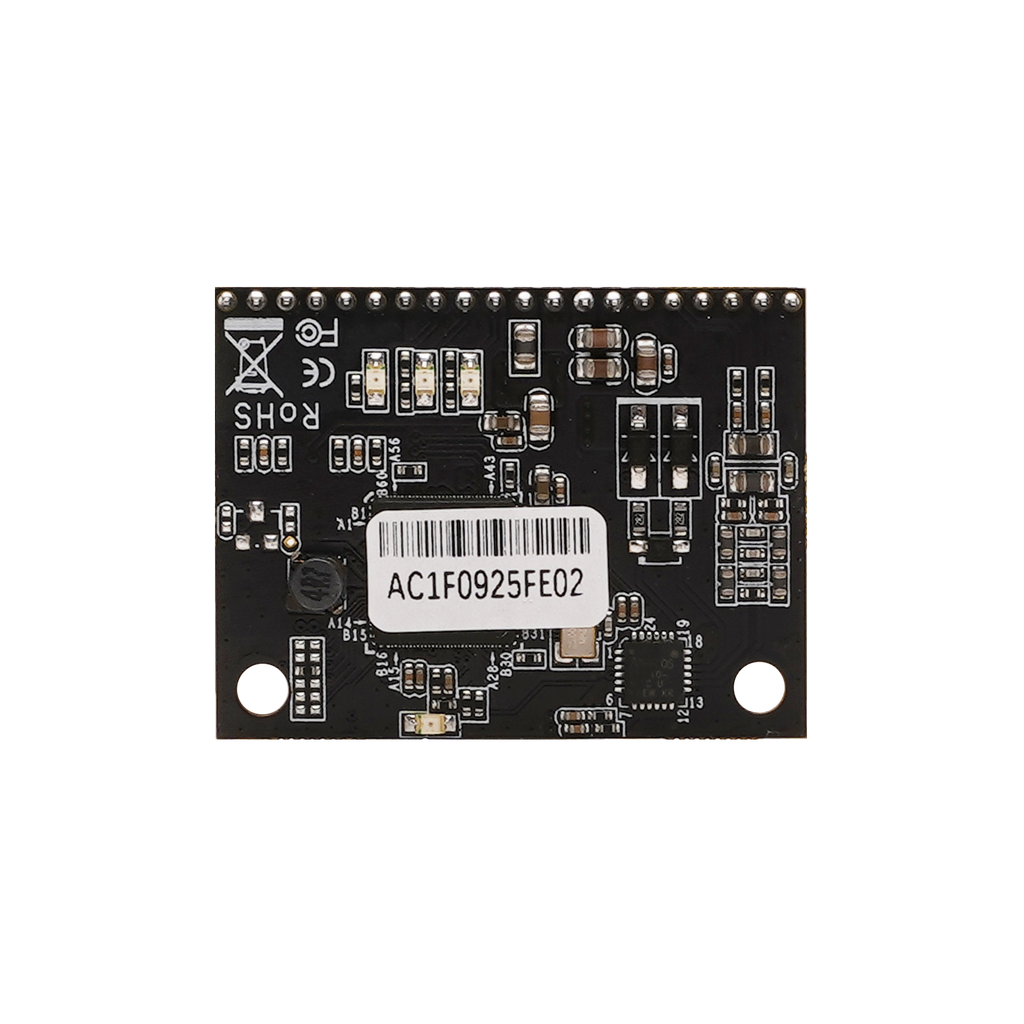

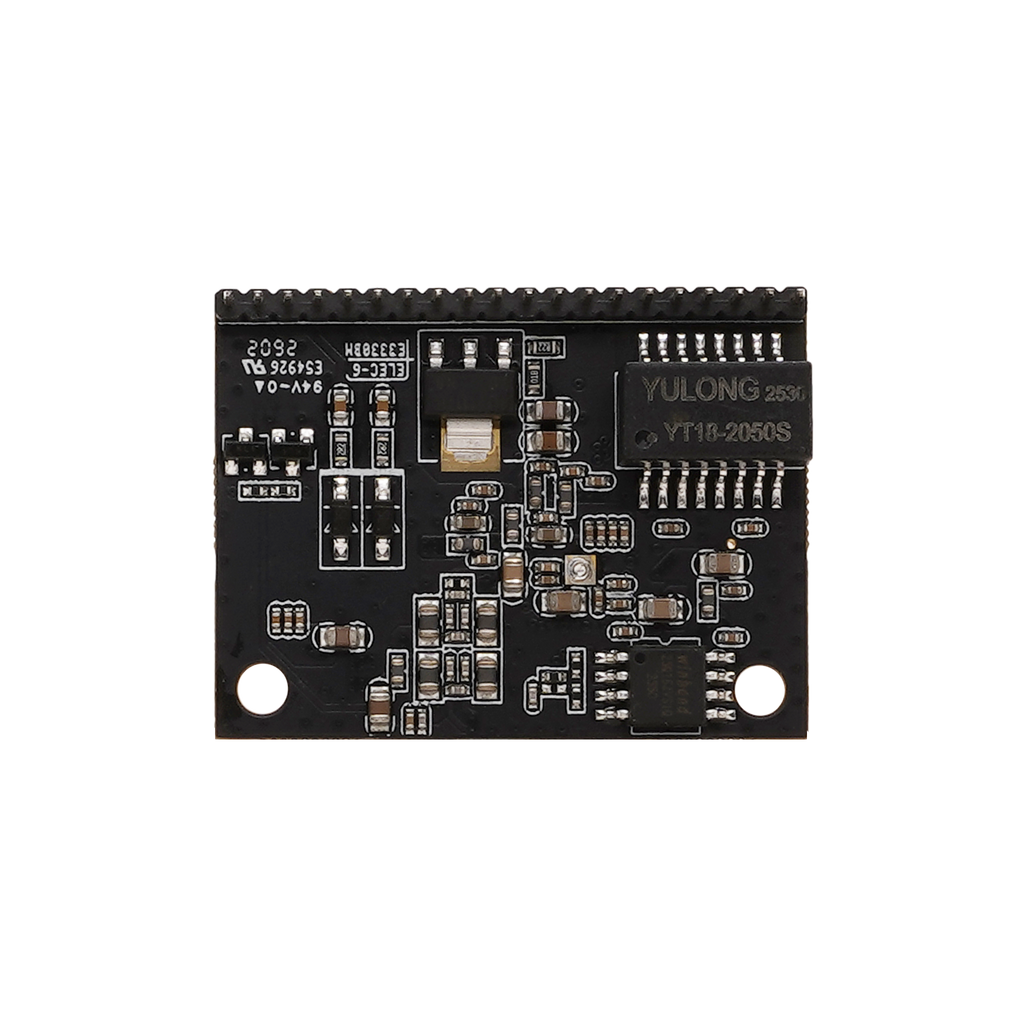

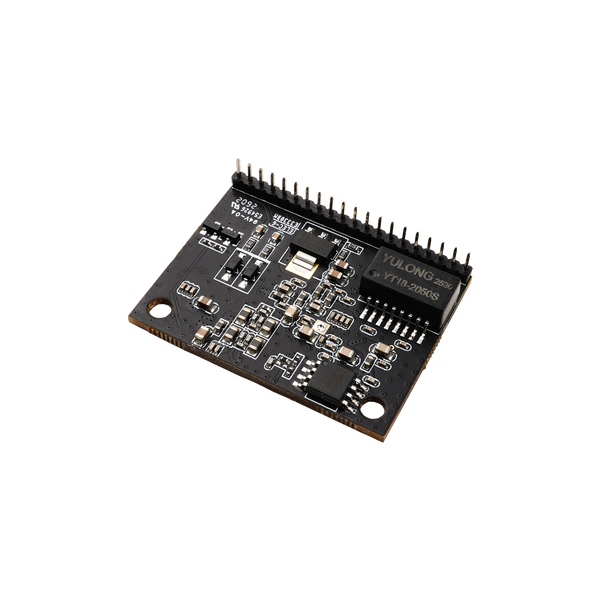

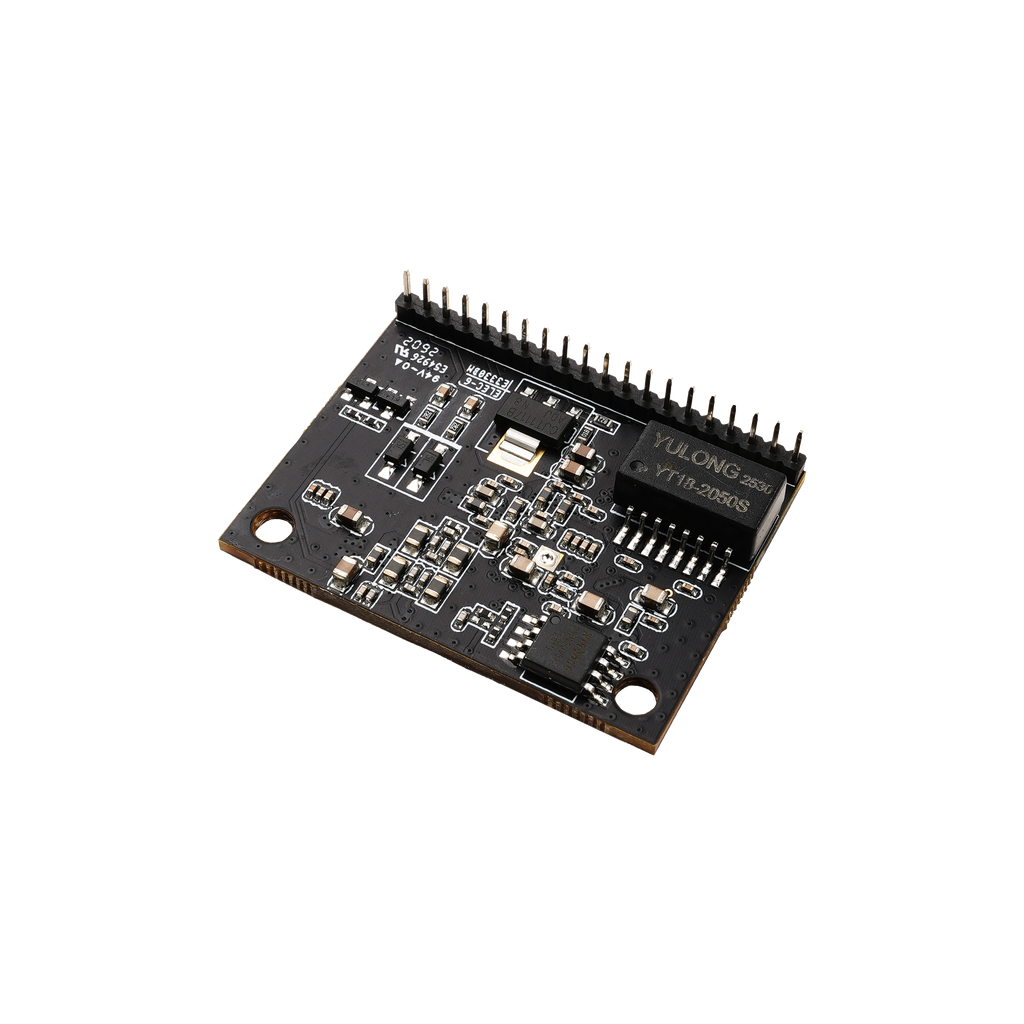

WisLink LX200V230 is a power-line communication(PLC) module based on the Qualcomm QCA7420 SoC. It is designed for embedded applications. It is compact, supports both IEEE1901 and Homeplug AV standards, and is ideal for a range of scenarios.
The power line’s maximum transmission rate can reach 500Mbps*.
Support 128-bit AES encryption, takes up 2-30MHZ band communication, the existing CATV cable radio signal or no effect, without user configuration, wiring after the completion of the work.
Faster time-to-market and the flexibility of product function.
*Note: The maximum data rate parameter is given for the physical layer. The speed for the data layer will be lower.
Complete documentation of this product can be found on our website documentation page.
Key Features
- Qualcomm QCA7420 SoC
- Max Data Rate: 500Mbps*
- Max Range:
-
- 300m Power Lines
- 600m Telephone Lines
- 2000m Cable Lines
- IEEE1901 and Homeplug AV Support
- MII Standard Interface
- 128-bit AES Encryption of Data
- A maximum of 8 modules can interface with each other
- Works below CATV signal interference range
Packaging
- Product Dimensions:40mm x 30mm
- Product Weight:1kg
-
Inclusions:
- 1pc The LX200V30 Board
