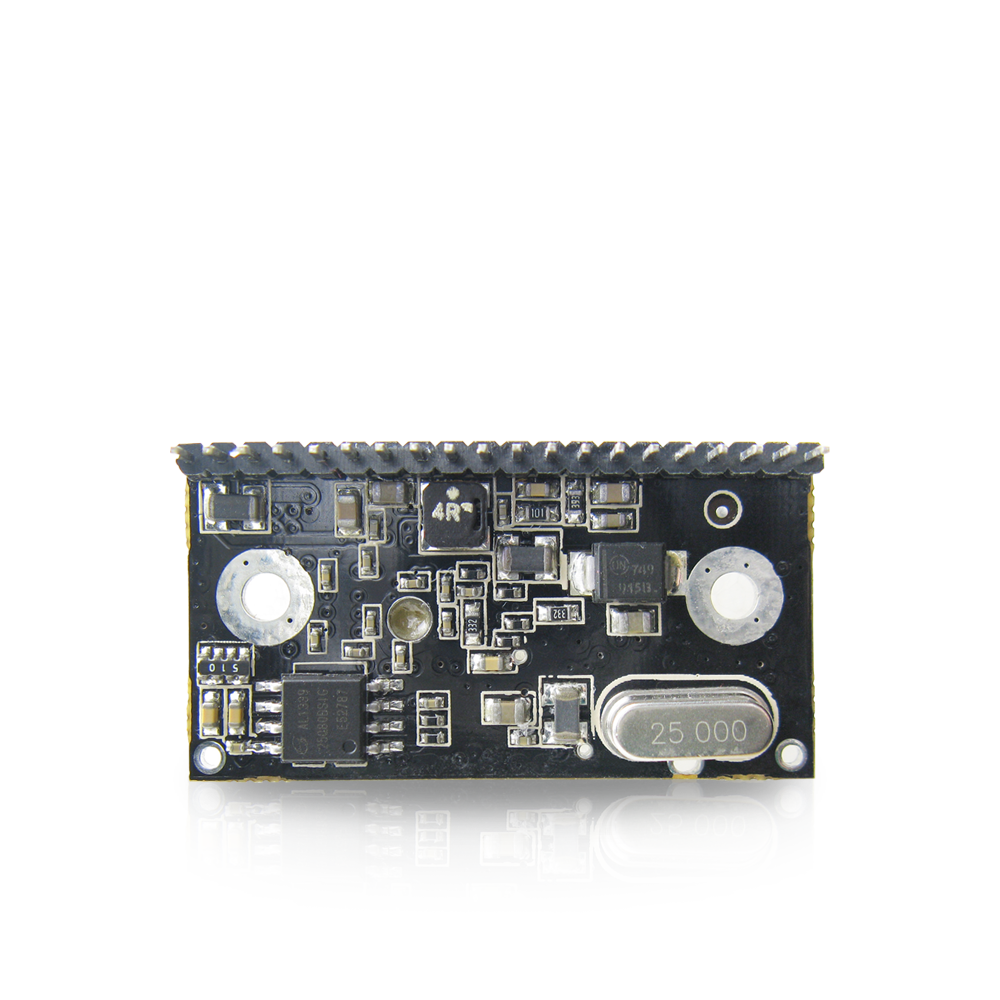

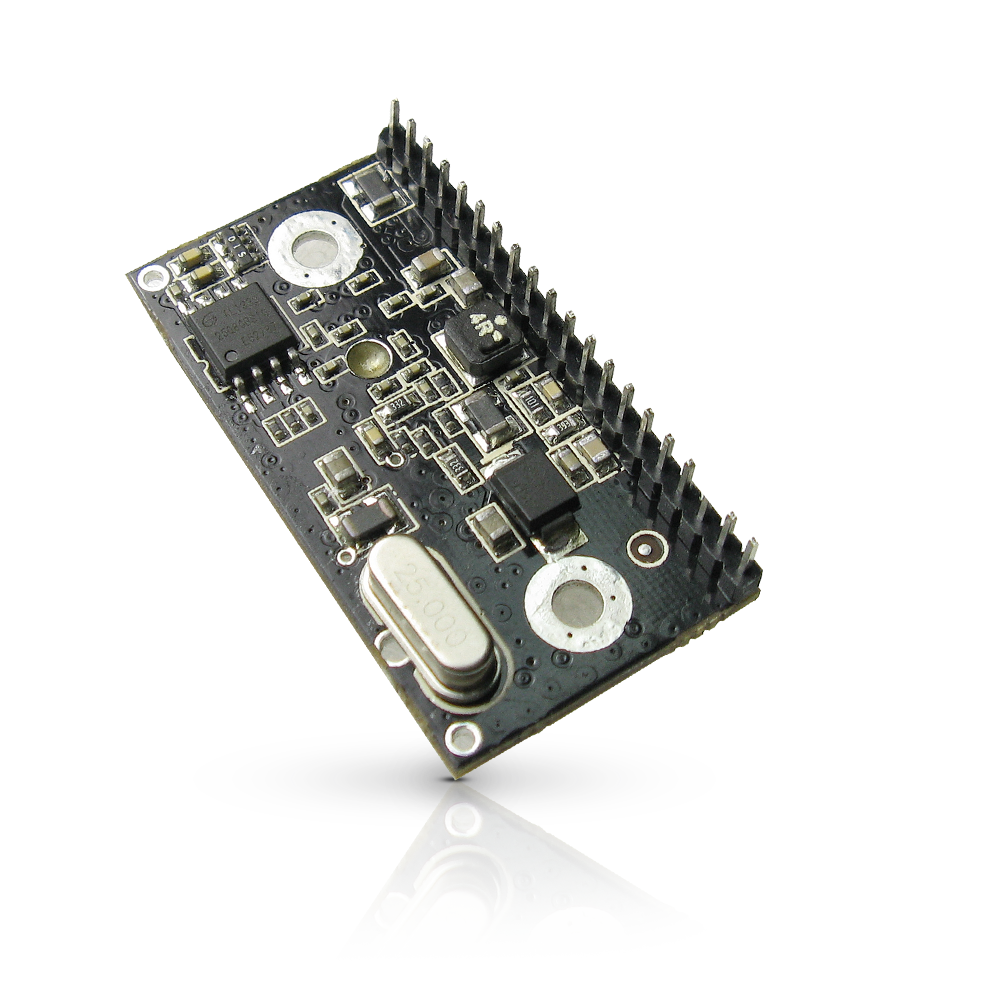

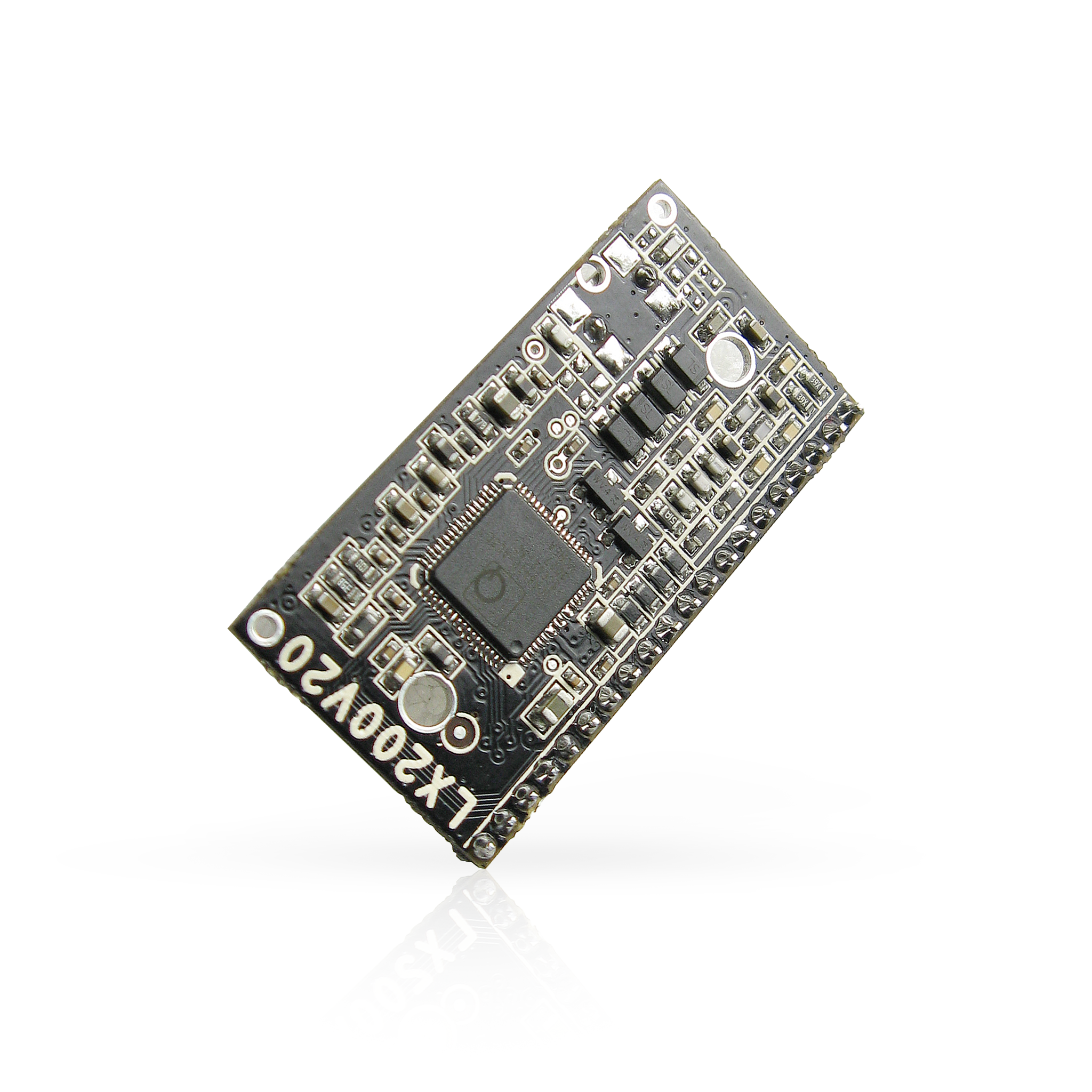

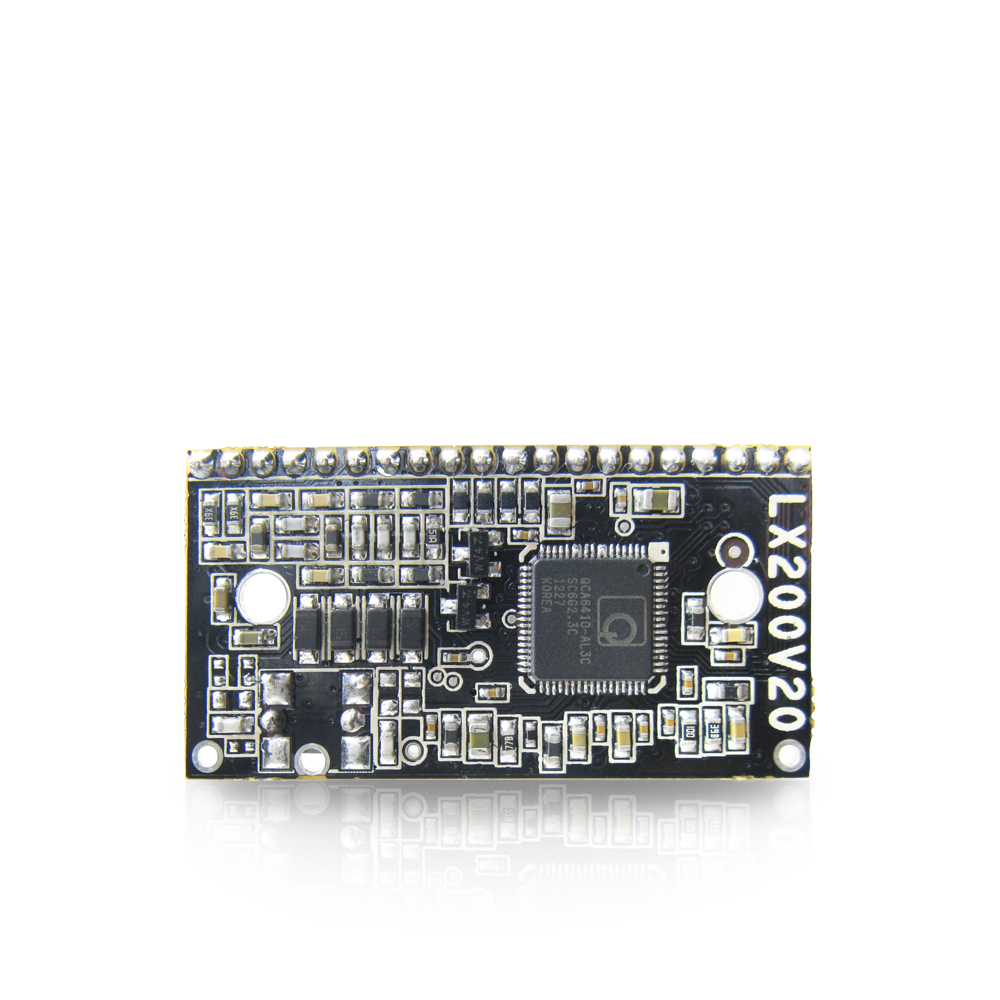

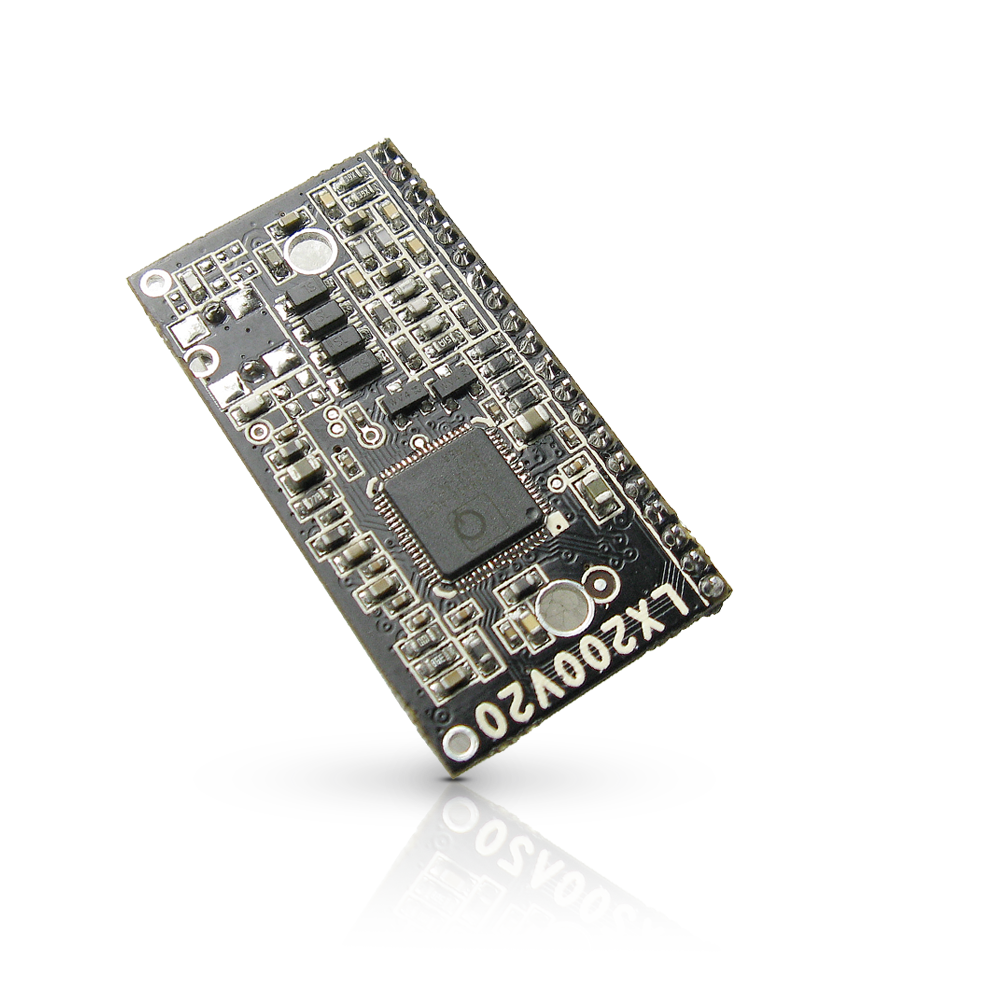

WisLink PLC LX200V20
Power-Line communication(PLC) Module
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description
WisLink PLC LX200V20 is a power-line communication(PLC) module based on the Qualcomm QCA6410 SoC. It is designed for embedded applications. It is compact, supports both IEEE1901 and Homeplug AV standards, and is ideal for a range of scenarios.
The module uses the MII interface to provide and can be integrated with IoT nodes, CCTV cameras, smart metering systems, energy management systems, etc.
Note: The maximum data rate parameter is given for the physical layer. The speed for the data layer will be lower.
Key Features
- Qualcomm QCA6410 SoC
- Max Data Rate: up to 200Mbps*
- Max Range:
- 300m Power Lines
- 600m Telephone Lines
- 2000m Cable Lines
- IEEE1901 and Homeplug AV Support
- MII Standard Interface
- 128-bit Encryption of Data
- A maximum of 8 modules can interface with each other
- Works below CATV signal interference range
Packaging
- Product Dimensions:60mm x 30mm
- Product Weight:1kg
-
Inclusions:
- 1pc The LX200V20 Board
- 1pc The LX200V20 Board
