2.4 GHz mini PCIe Concentrator Module for LoRa Based on SX1280

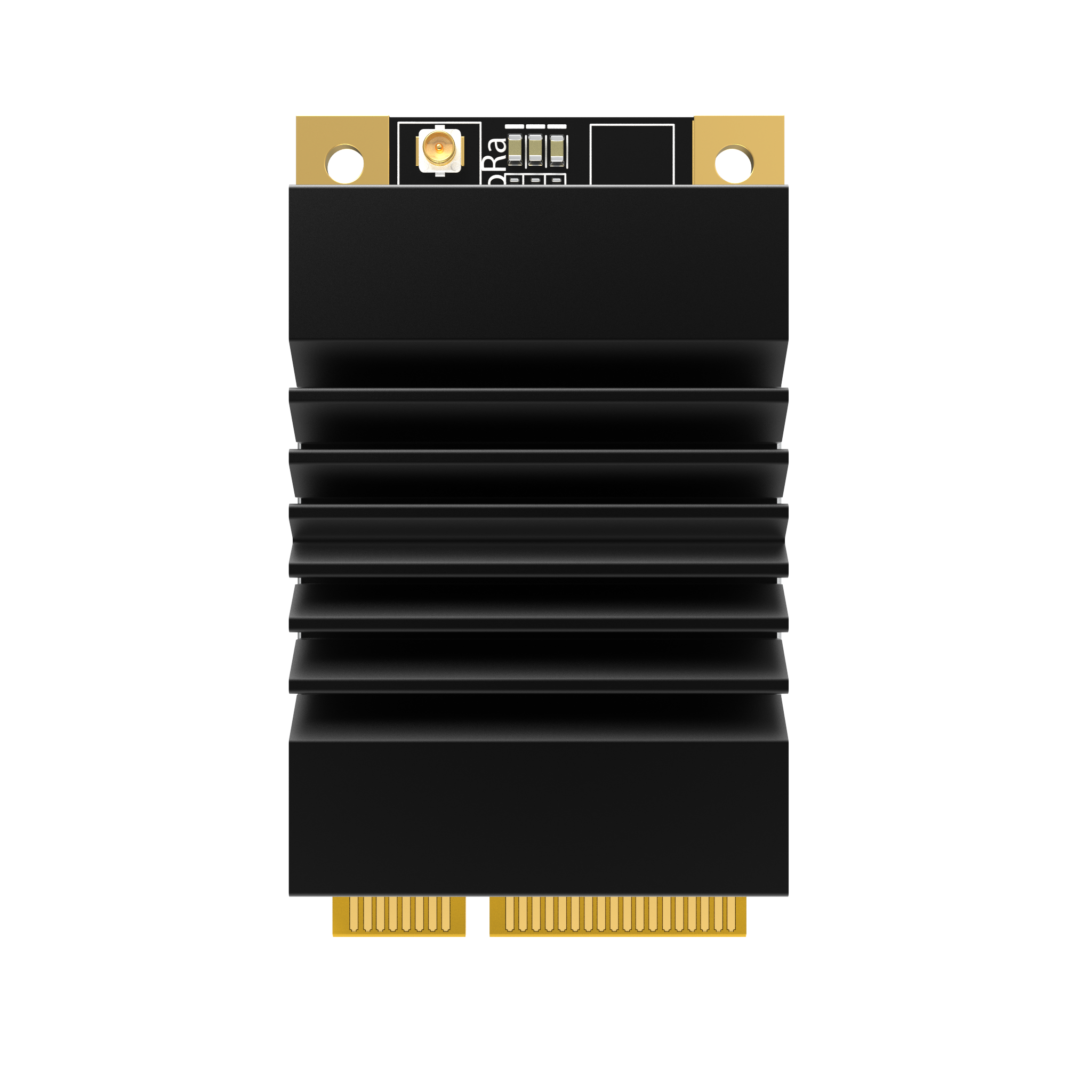

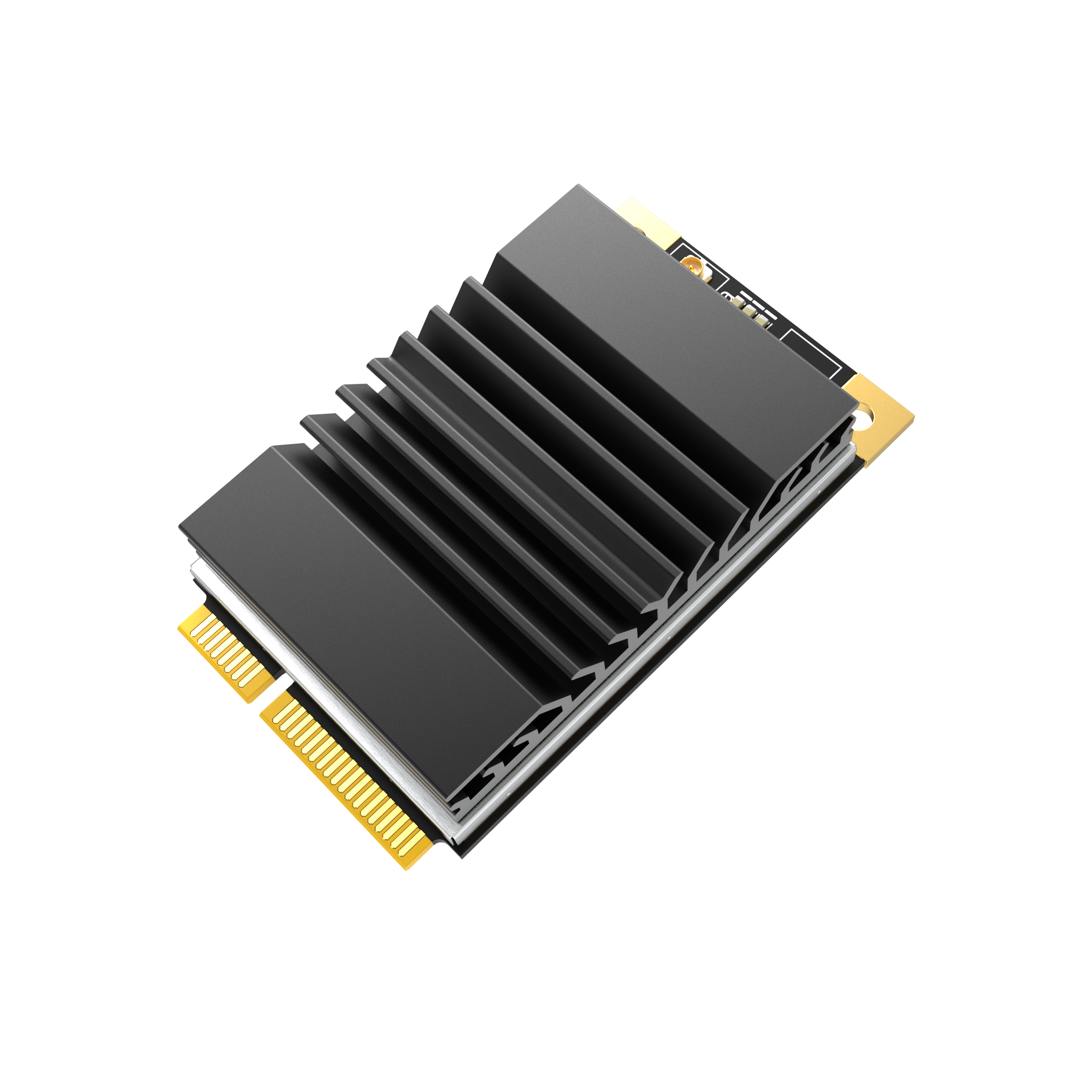

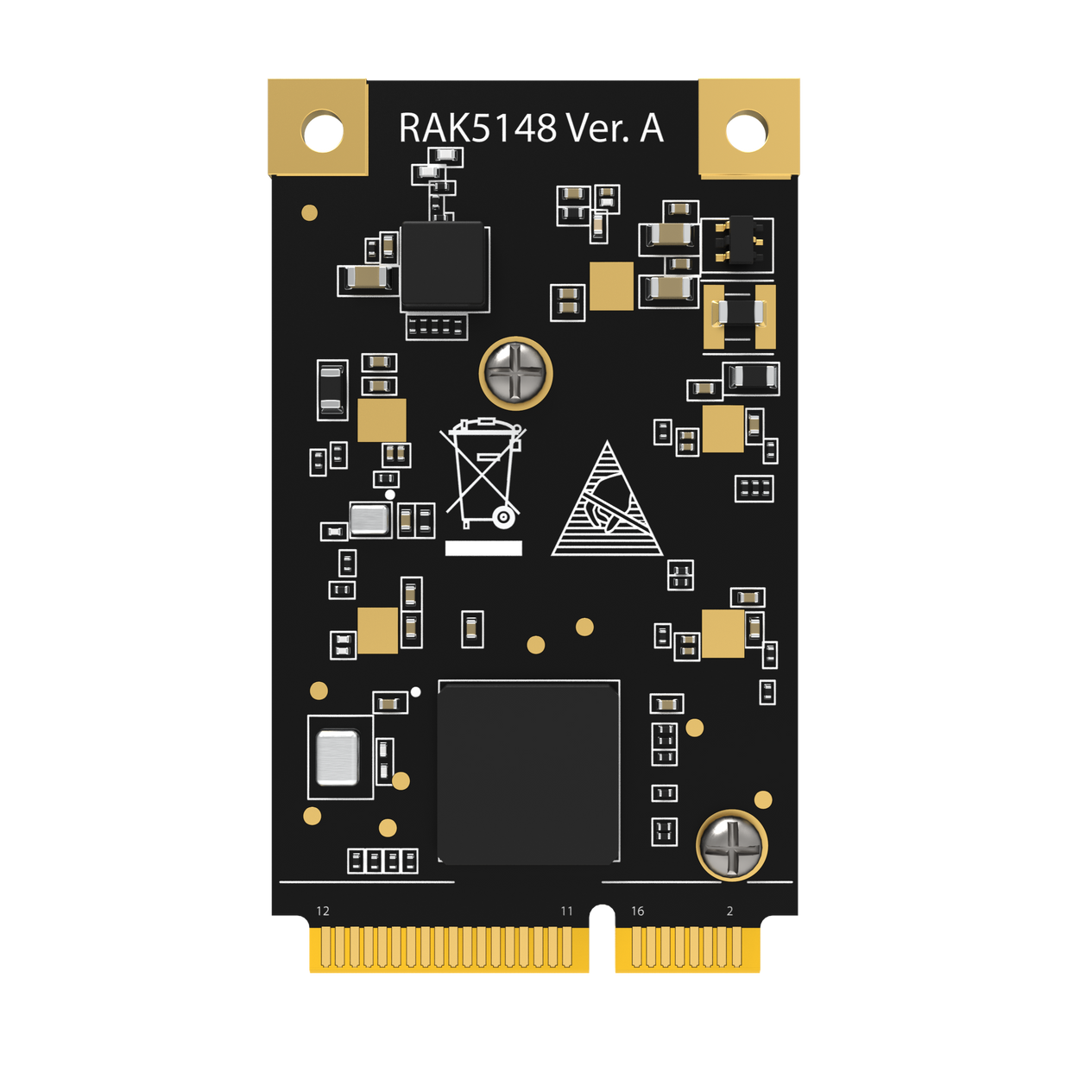

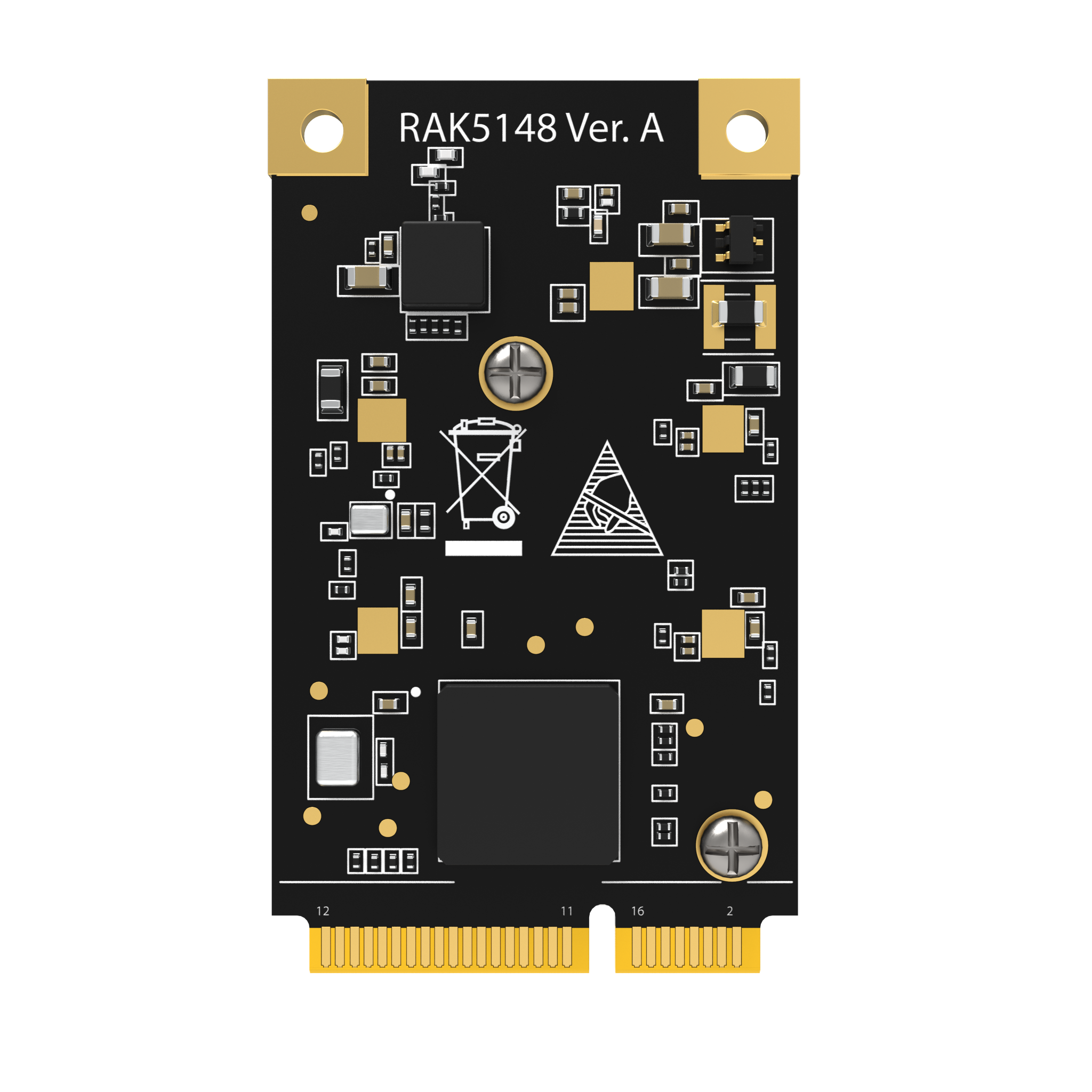

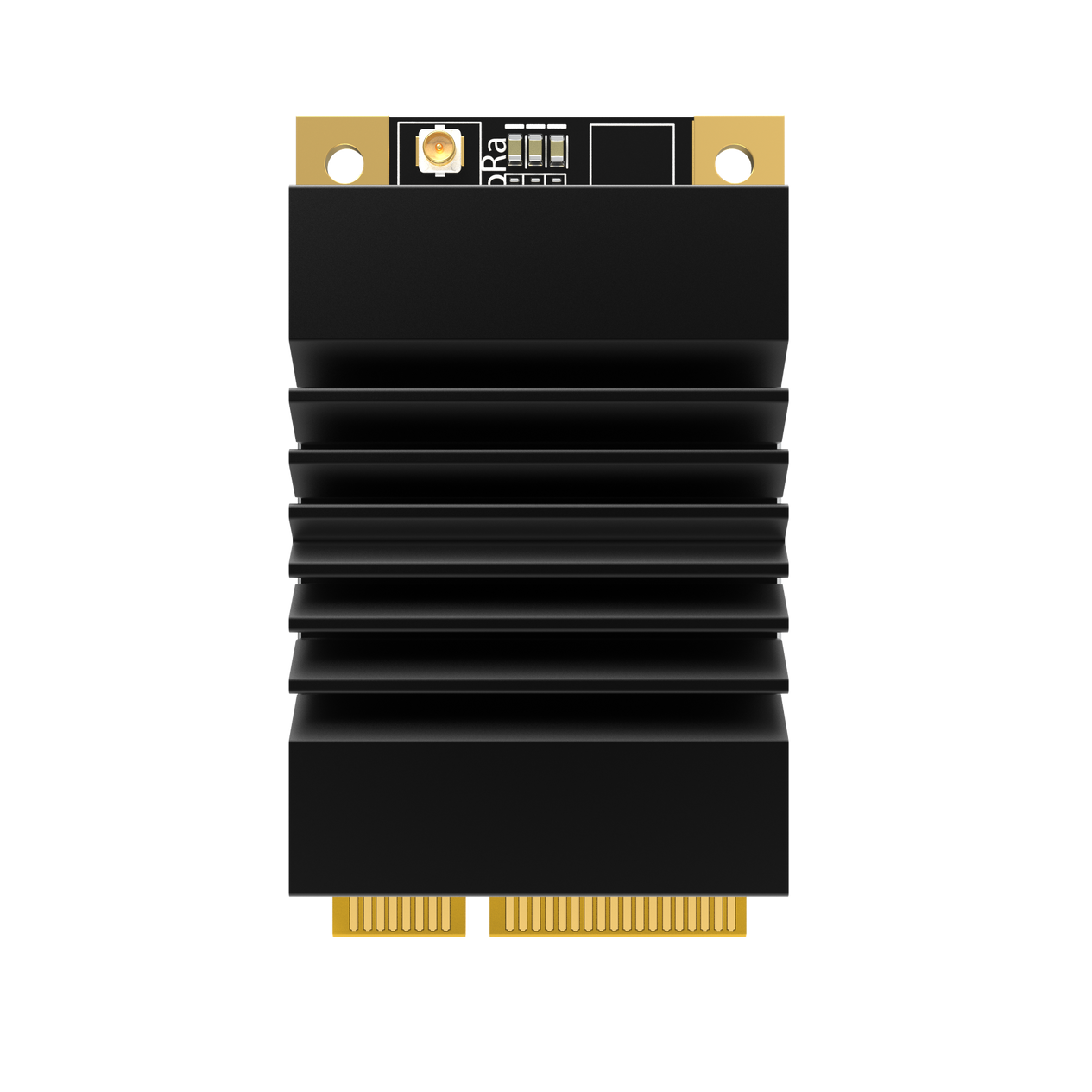

The WisLink LPWAN 2.4 GHz Concentrator Module for LoRa (RAK5148) features a mini-PCIe form factor and is based on Semtech SX1280. That allows for easy integration into existing routers or other network equipment with LPWAN gateway capabilities. The RAK5148 comes with a ZOE-M8Q GPS chip onboard (optional), making it a versatile option for any embedded platform with a free mini-PCIe slot and USB connection.

Please note that GPS is not available by default on the RAK5148. If you require GPS functionality, please contact us at inquiry@rakwireless.com for further assistance.

Product Features

• Mini-PCIe form factor for easy integration
• 3+1 SX1280 (3 for receiving, 1 for transmitting)
• 3V Mini PCI-e, compatible with 3G/LTE cards of Mini PCI-e type
• Tx power up to 27 dBm, Rx sensitivity down to -132 dBm @ SF12, BW 203 KHz
• USB interface

Included in the package:

• 1x RAK5148
• 1x IPEX LoRa(2.4GHz) antenna*

* The included antenna is for evaluation and indoor use. You can add an external indoor or outdoor antenna from the Accessories page.

Documentation

RAK5148 WisLink LPWAN 2.4 GHz Concentrator Module Datasheet

RAK5148 WisLink LPWAN 2.4 GHz Concentrator Module Datasheet
