PDM Stereo Microphone Sensor STMicroelectronics MP34DT06J
RAK18000
Note: The RAK18000 does not work with the WisBlock Audio Interposers. If you want to use a PDM microphone with an Audio Interposer board the the RAK18031 is the replacement for the RAK18000
Product Description

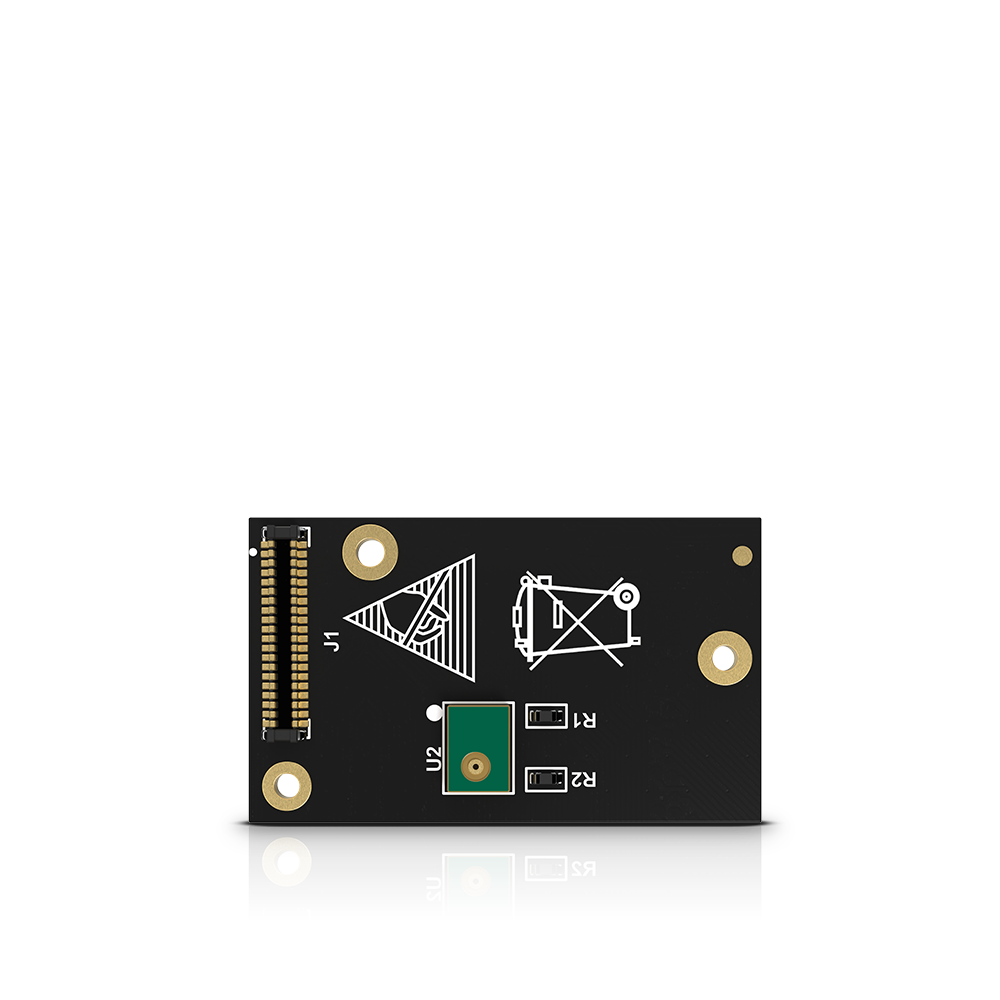

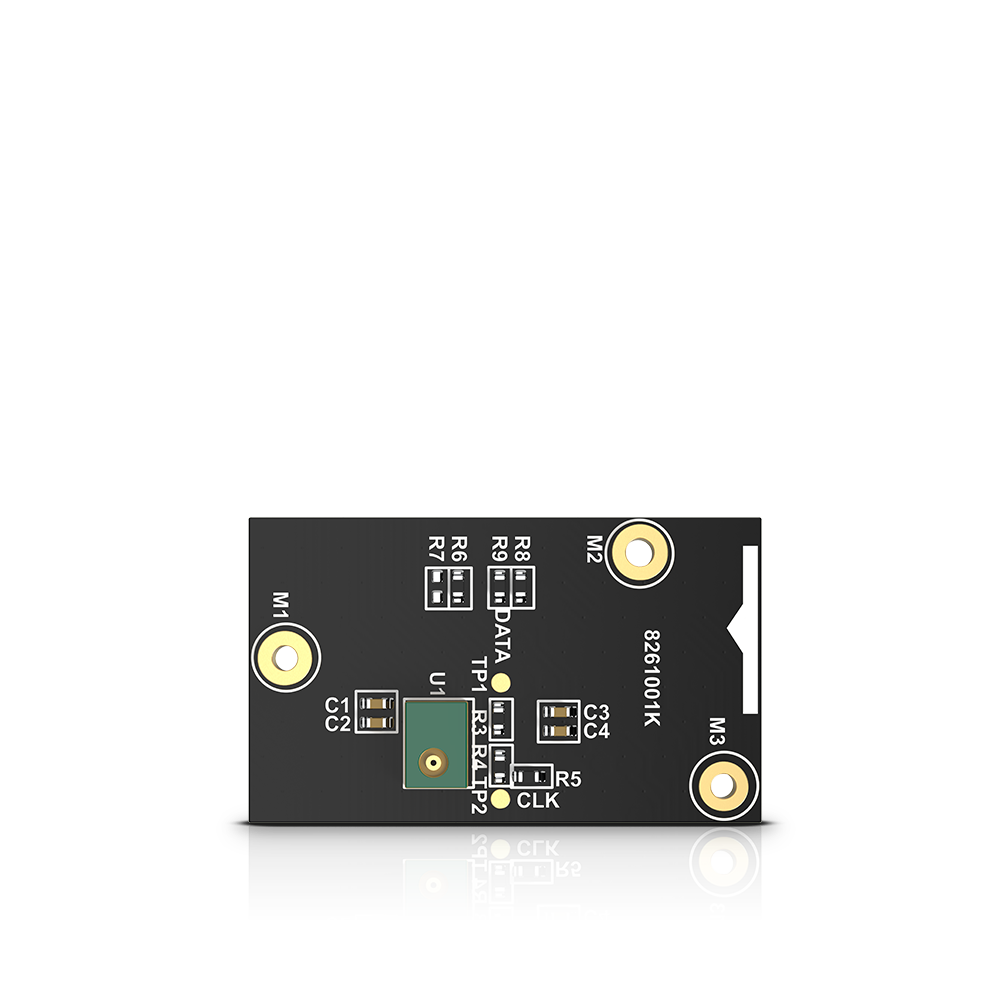

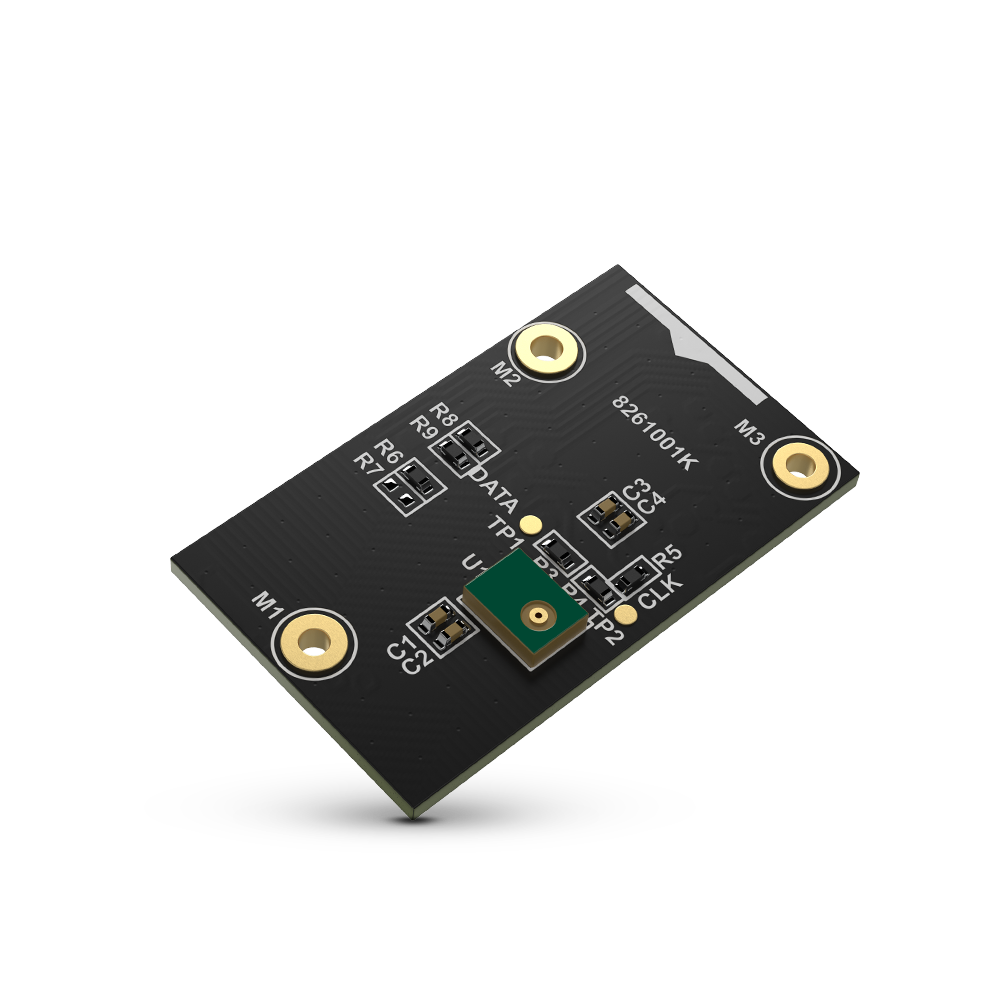

RAK18000 is a WisBlock Sensor based on two STMicroelectronics MP34DT06 microphone modules which extends the WisBlock system with sound sensing capability.
The RAK18000 is a digital microphone module that is designed to detect sounds and to support left and right channels. It is also capable of changing microphone orientation on the left or right channel through the switch resistor.
Key Features
- 3.3 V input voltage
- 64 dB signal-to-noise ratio
- –26 dBFS ± 1 dB sensitivity
- Stereo microphone 2 x MP34DT06
- Low power consumption
- 25 x 15 mm
