WisTrio iTracker Pro
RAK8212
Product Description

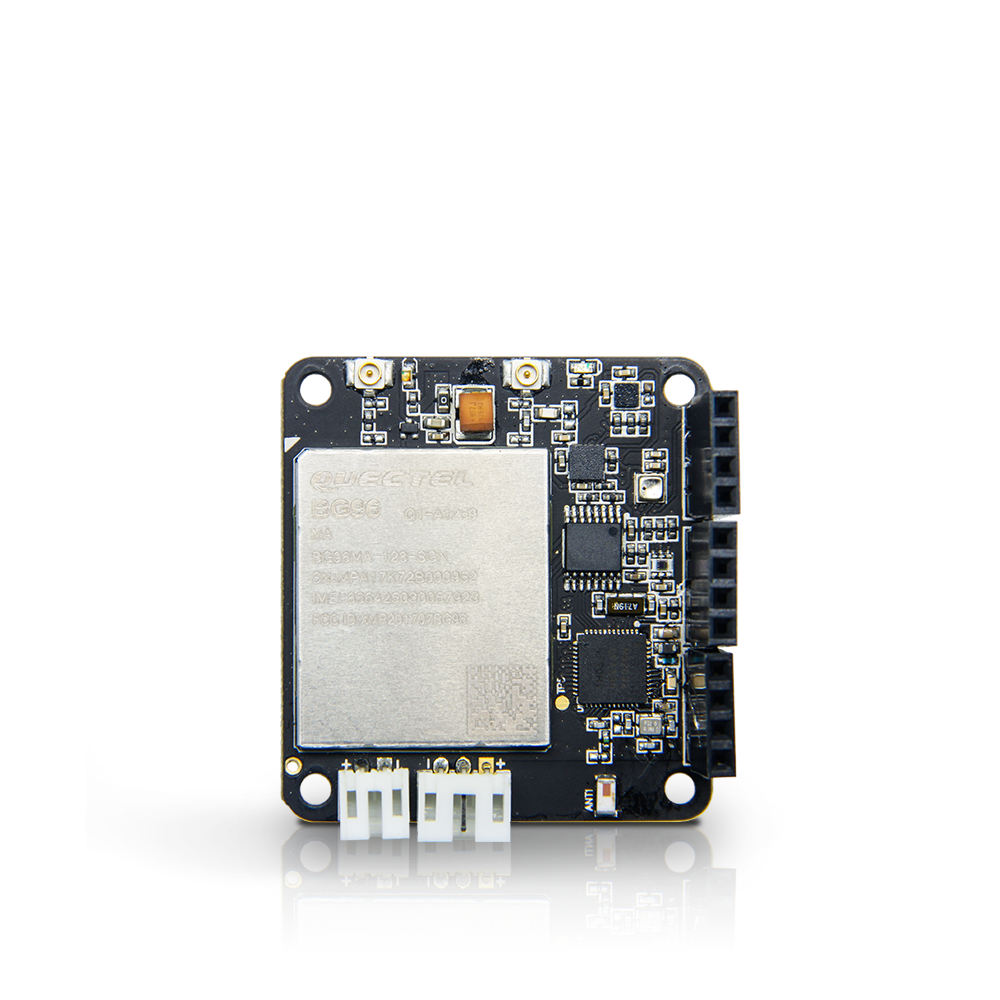

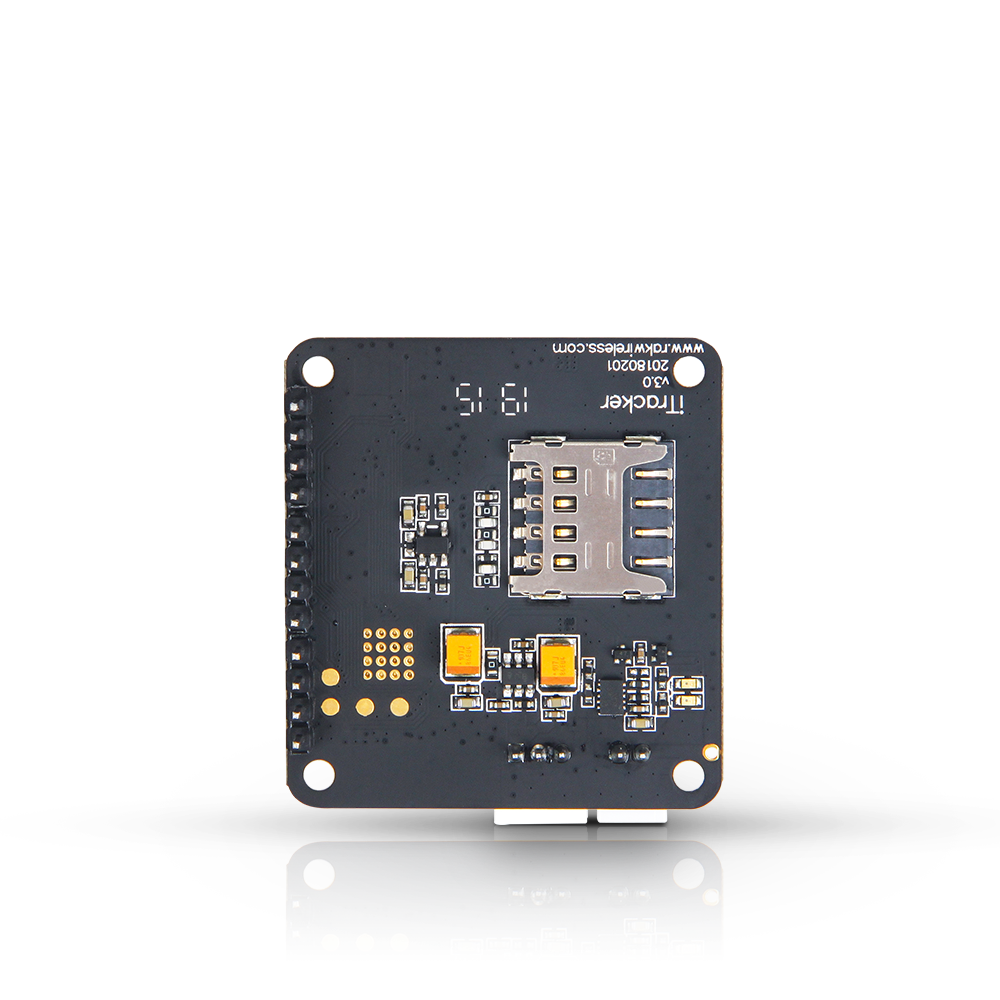

WisTrio iTracker Pro (RAK8212) is a versatile developer board aimed at aiding in quick prototyping using NB-IoT. The board includes a vast array of connectivity options (NB-IoT, BLE 5.0, and GPS) and sensors like (accelerometer, ambient light sensor, and humidity temperature and pressure sensor). At the heart of the module is the venerable Nordic nRF52832 BLE chip. The NB-IoT connectivity is provided by the Quectel BG96 module (with embedded GPS). The board provides an SWD interface for programming the nRF52832 core (using J-link). The combination of BLE and NB-IoT provides for a flexible, low power consumption development environment. The device is suitable for a myriad of applications, ranging from telemetry to live tracking and environment sensing.
Designed with Reducing Time to Market in mind.
Complete documentation of this product can be found on our website documentation page.
To properly use this product, make sure to purchase a compatible Emulator Kit. We recommend that you directly buy from SEGGER Microcontroller's site to ensure that you get a genuine product.
Key Features
- Quectel BG96 Nb-IoT Module (with embedded GPS)
- Bands: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B28/ B39 (for Cat M1 only)
- Bluetooth 5.0 (BLE)
- Accelerometer, Ambient Light Sensor, Humidity/Temperature/Pressure Sensor
- Comes with a converter board UART (Micro USB Connector)
Packaging
- Board Dimension: 43mm x 38mm x 18mm
- Package Weight: 0.2kg
- Package Size: 1cm x 1cm x 1cm

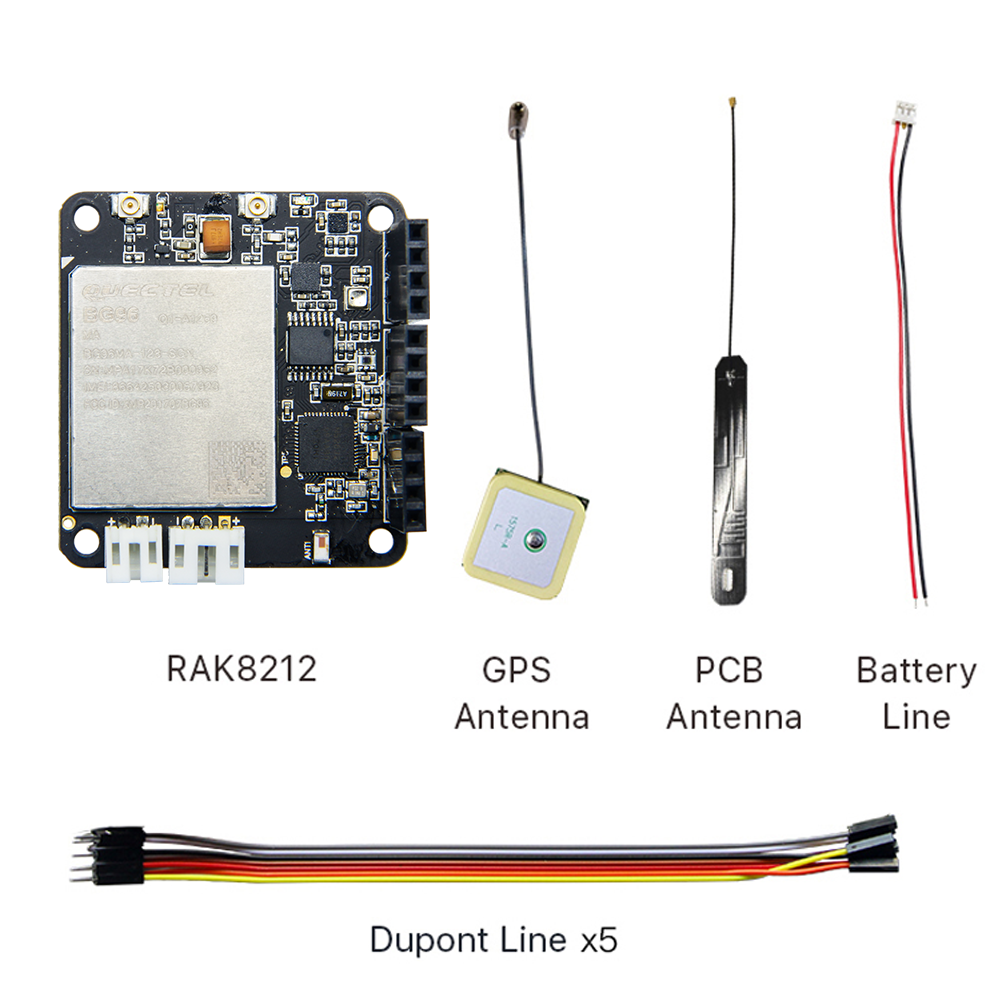

- Package Inclusions:
- 1pc RAK8212 developer board
- 1pc GPS Antenna
- 1pc PCB Antenna
- 1pc Battery Line
- 5pcs Dupont Line
