WisTrio iTracker NB
RAK8211-NB
Product Description

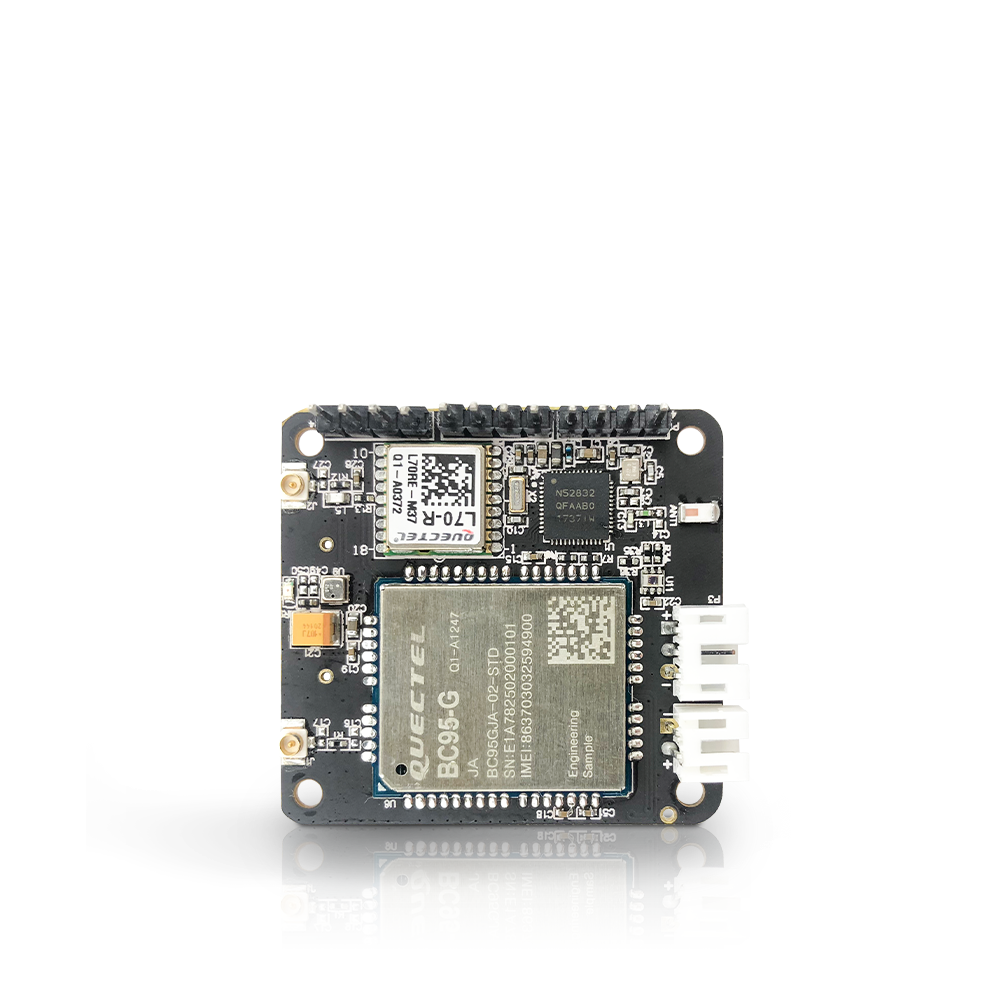

WisTrio iTracker NB (RAK8211-NB) is versatile developer board aimed at aiding in quick prototypes using NB-IoT. The board includes a vast array of connectivity options (NB-IoT, BLE 5.0 and GPS) and sensors like an accelerometer, a light sensor and a barometric sensor. At the heart of the module is the venerable Nordic nRF52832 BLE processor. The NB-IoT connectivity is provided by the Quectel BC95 module. The iTracker NB module is Arduino friendly and can be programmed using IDE. The board also provides SWD interface for programming the nRF52832 core. The combination of BLE and NB-IoT provides flexible low power consumption development along with myriad of application option ranging from telemetry to live tracking and environment sensing.
Designed to Reduce time to Market in Mind.
Complete documentation of this product can be found on our website documentation page.
Key Features
- Quectel BC95 Nb-IoT Module
- Quectel L70 GPS module
- Bands: B5/B8/B20/B28
- Bluetooth 5.0 (BLE)
- Accelerometer, Ambient Light Sensor, Humidity/Temperature/Pressure Sensor
Packaging
- Board Dimension: 43mm x 38mm x 18mm
- Package Weight: 0.2kg
- Package Size: 1cm x 1cm x 1cm

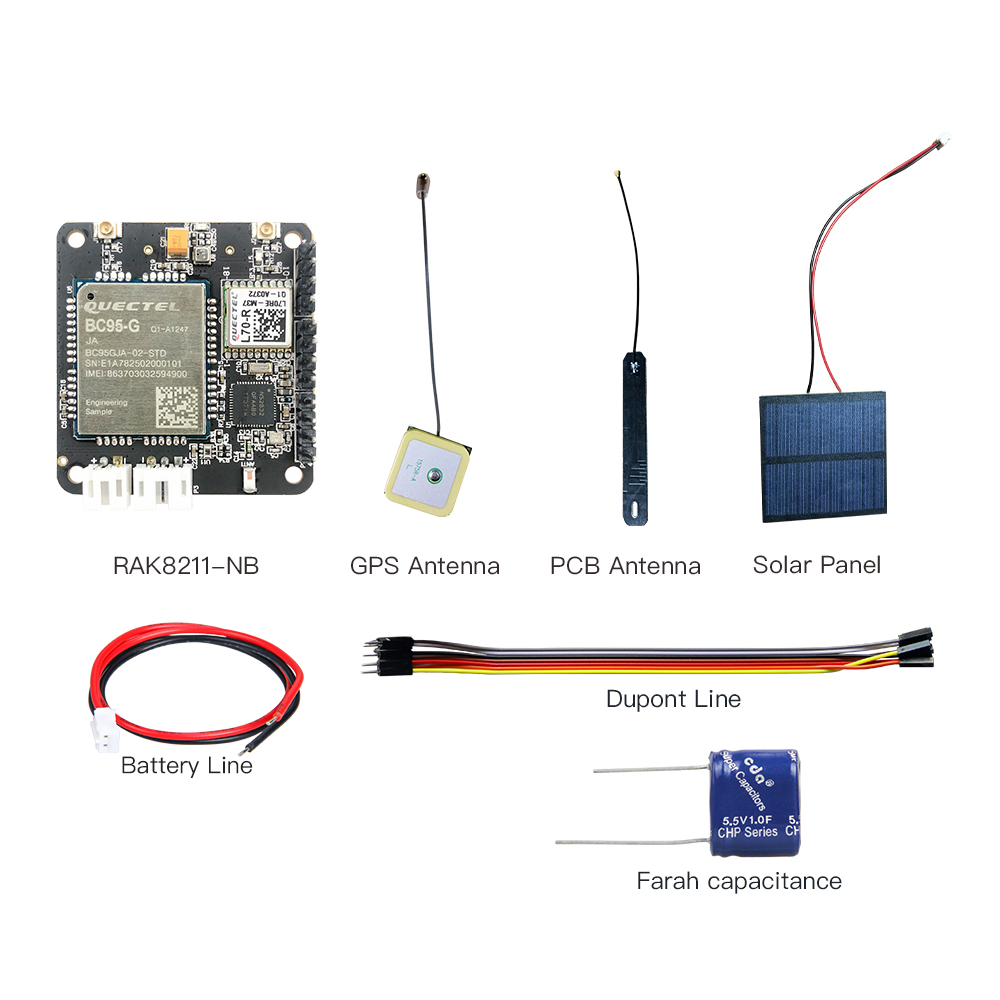

- Package Inclusions:
- 1pc WisTrio iTracker NB (RAK8211-NB)
- 1pc GPS Antenna
- 1pc PCB Antenna
- 1pc Solar Panel
- 1pc Battery Line
- 1pc 5.5V 1.0F Capacitor
- 5pcs Dupont Line
