Note: The WisNode Sense Home (RAK7204) is permanently out of stock. As an alternative product, we recommend RAK WisBlock Environment Monitor Kit.

Product Description

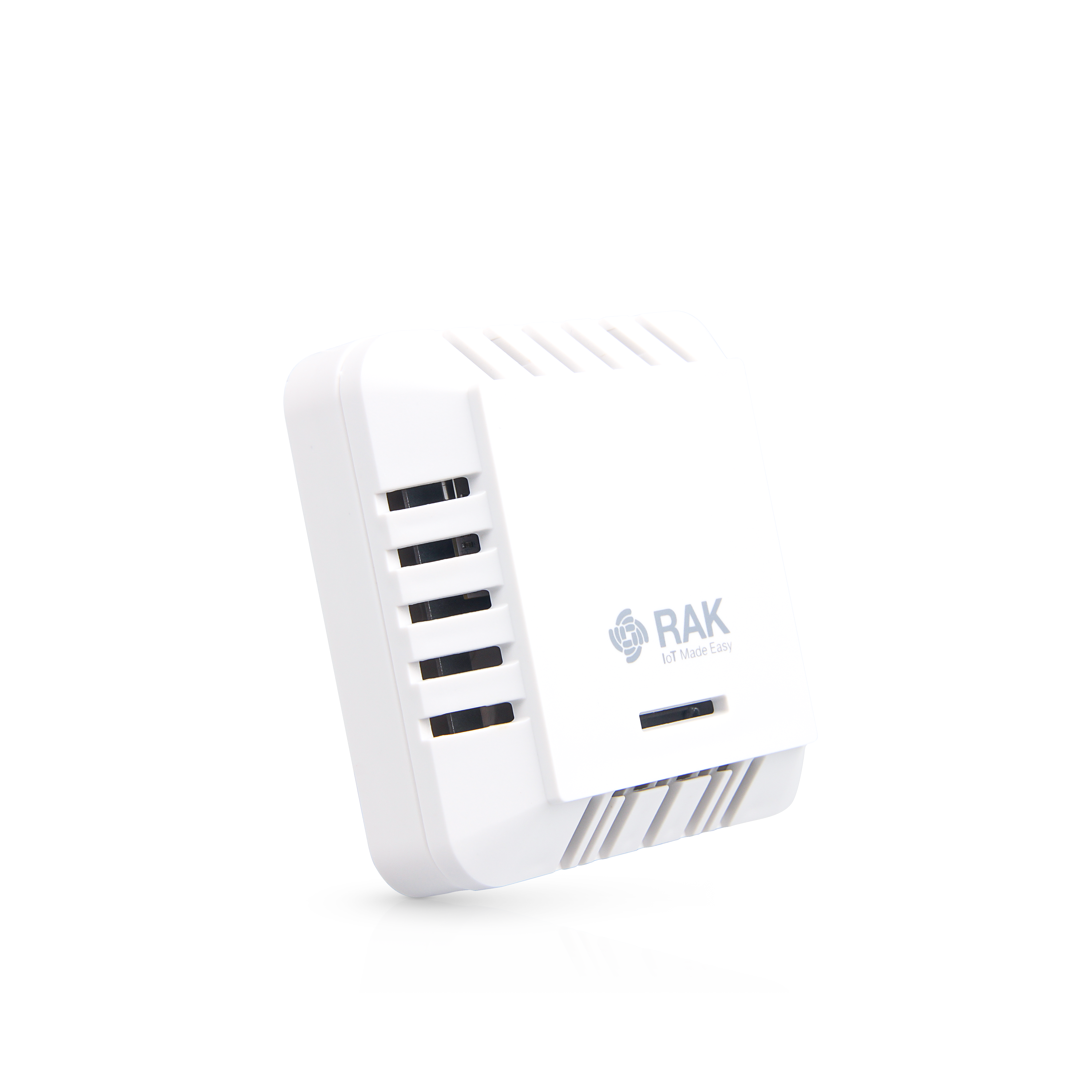

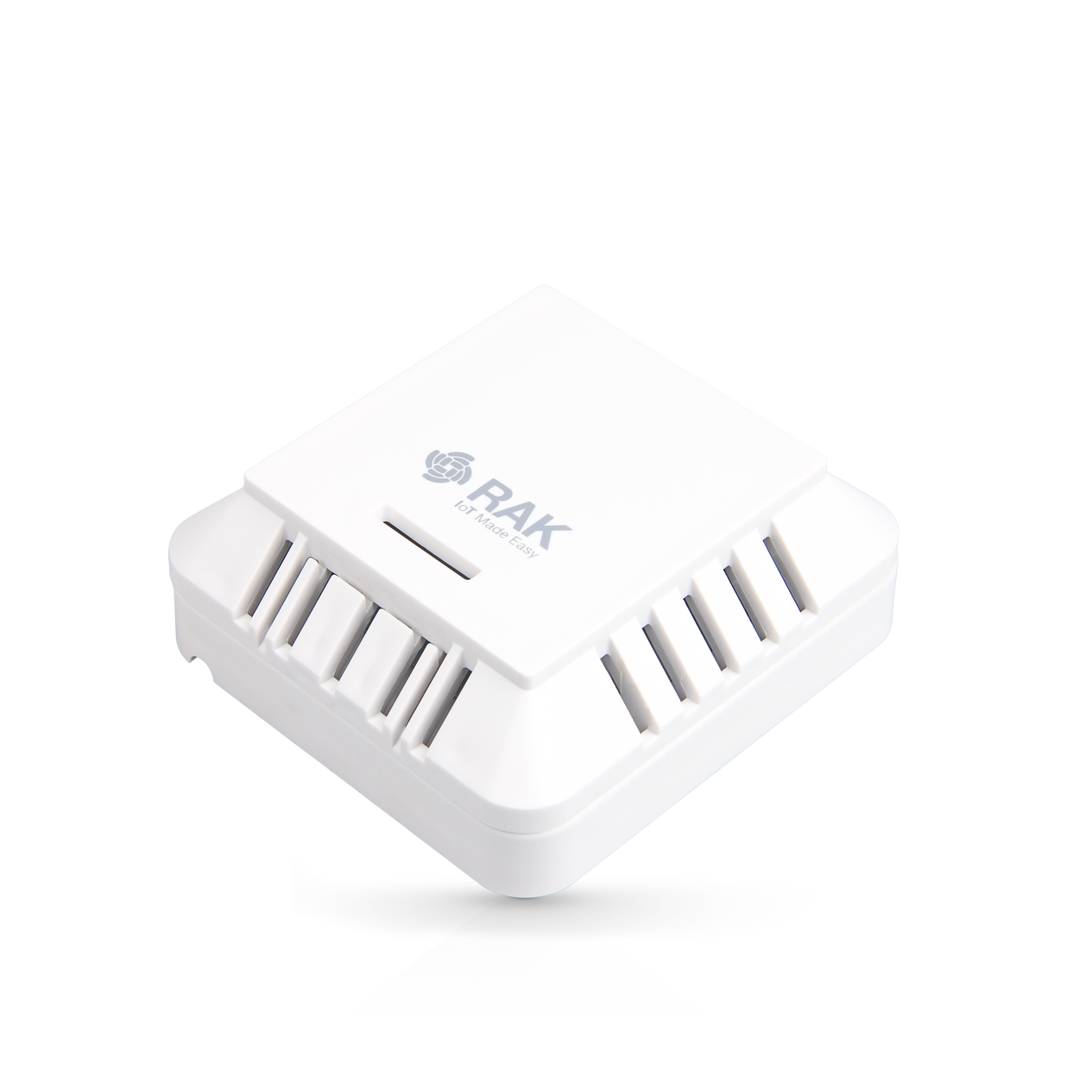

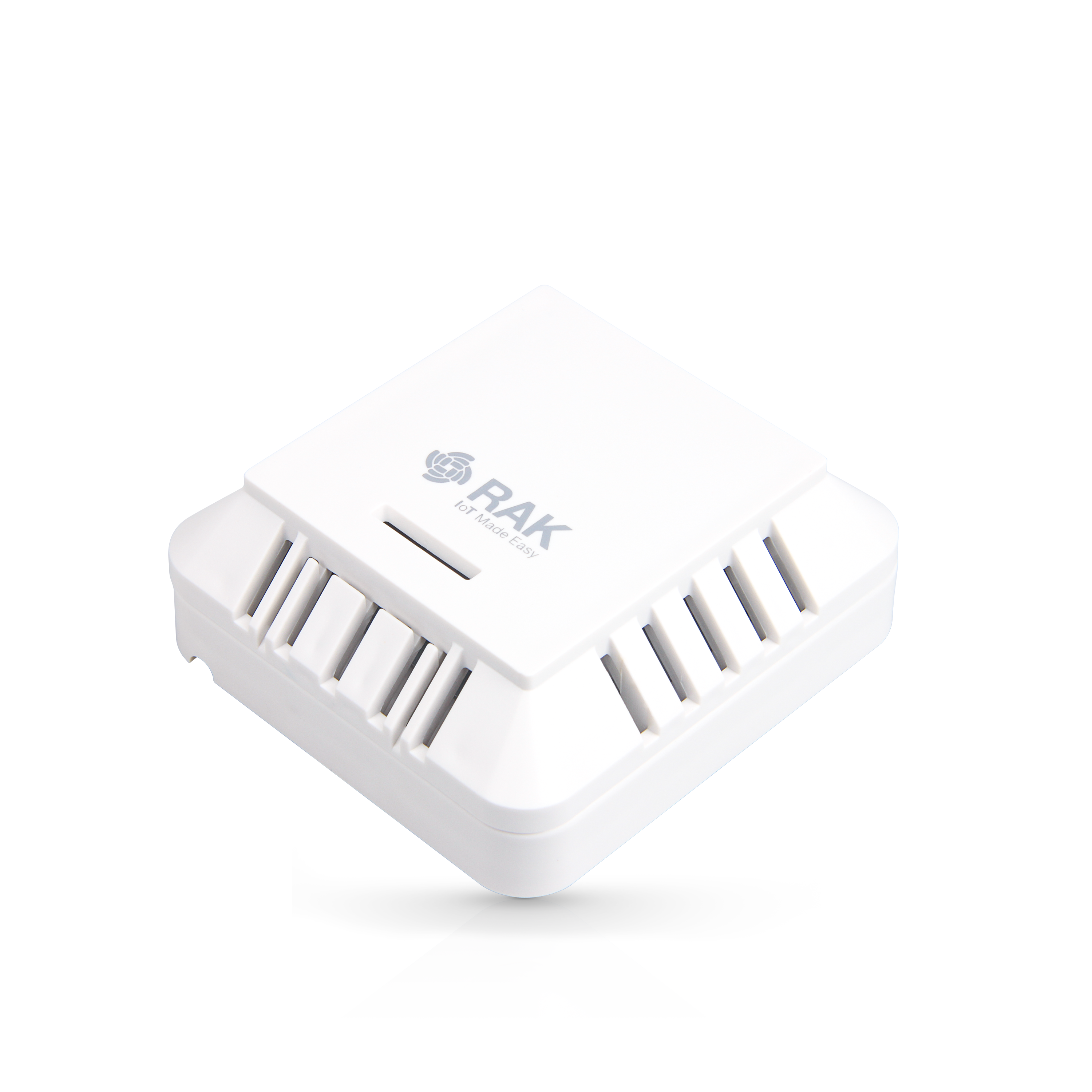

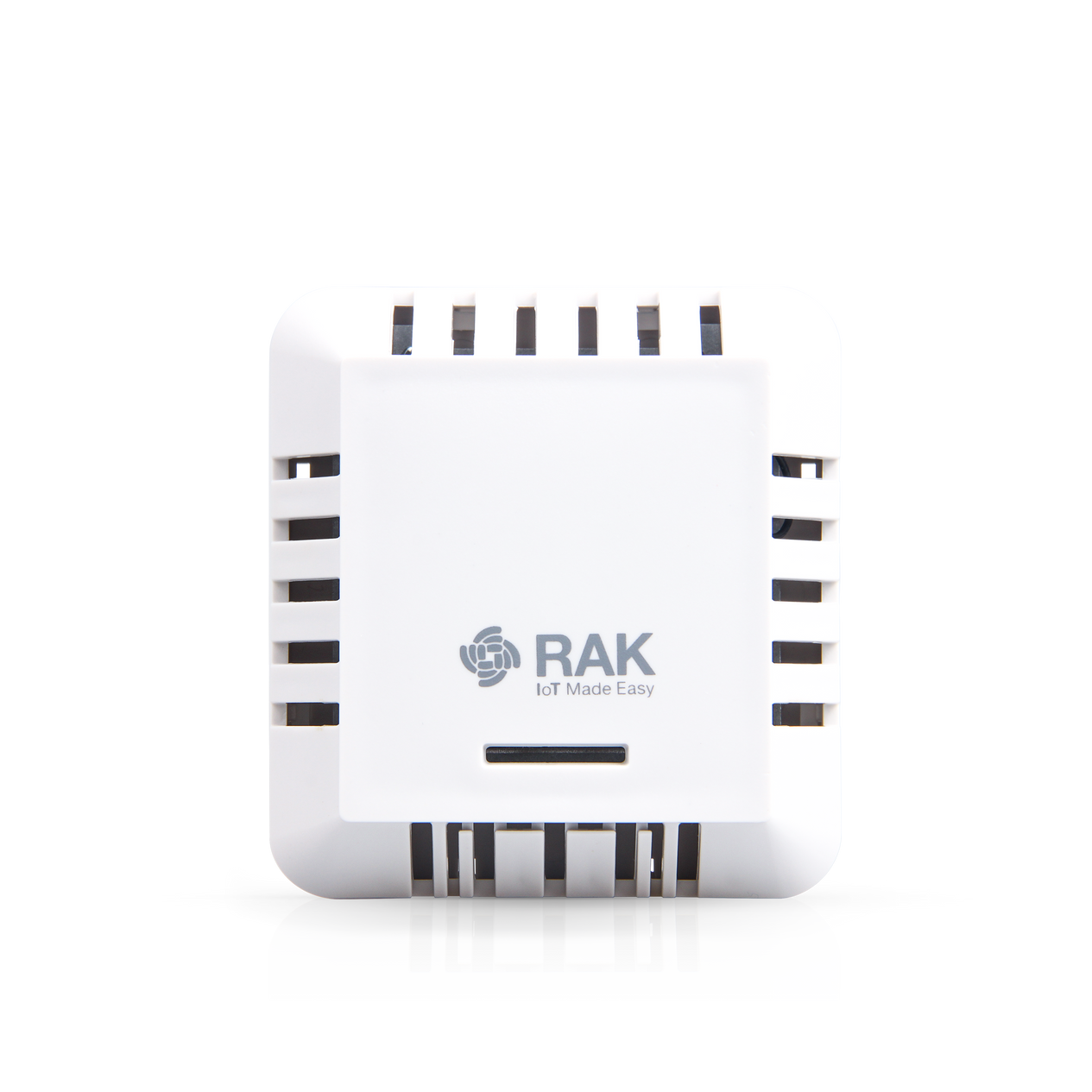

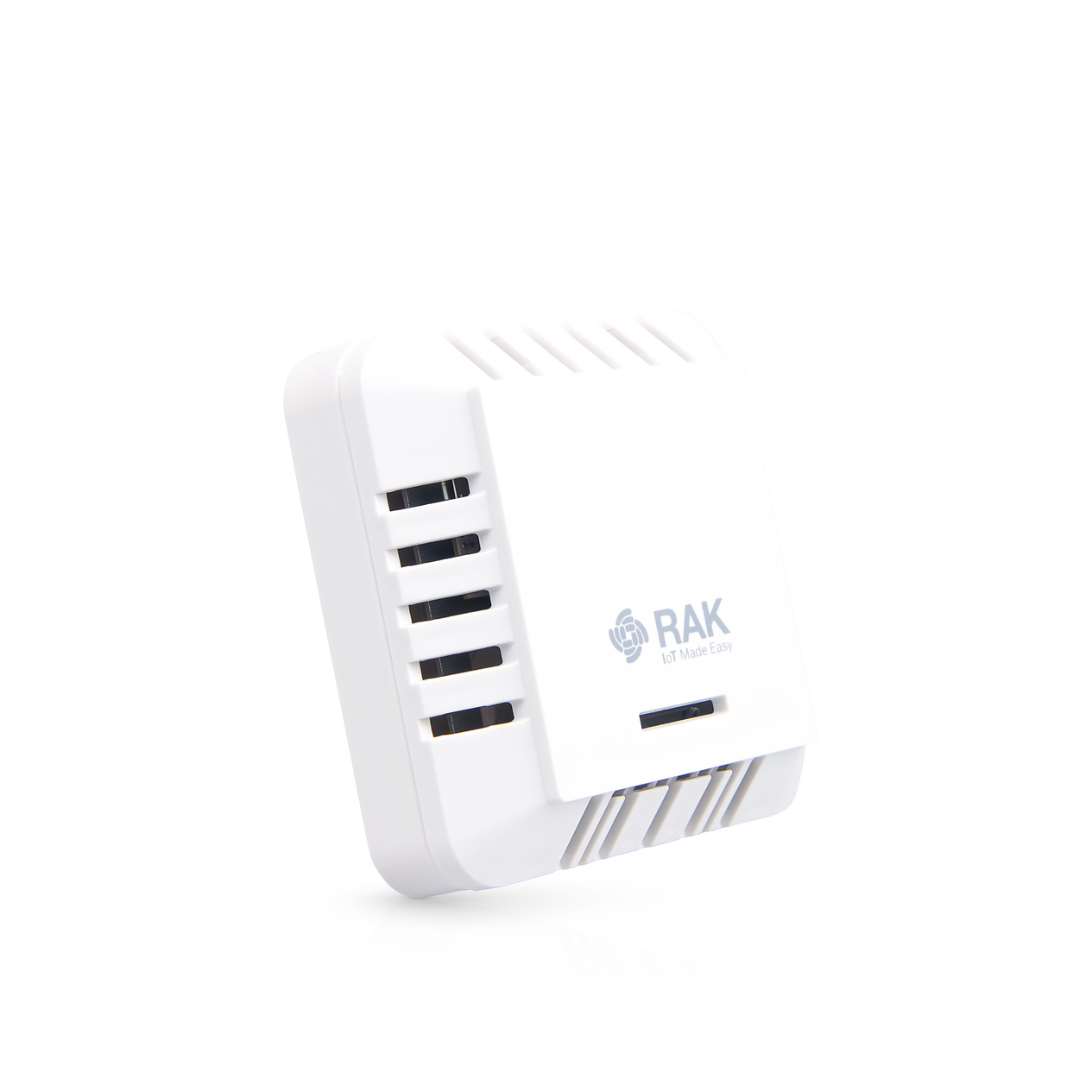

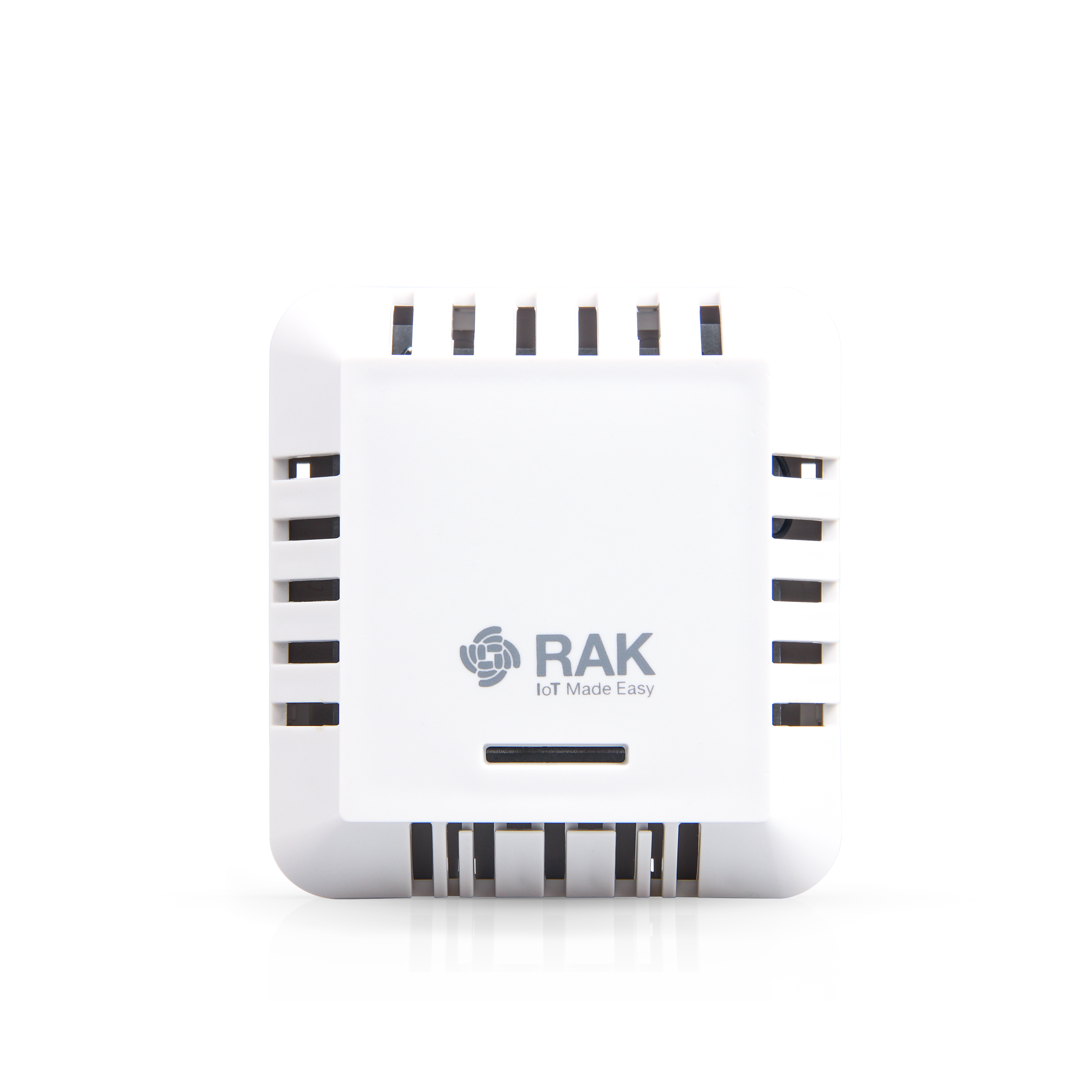

The WIsNode Sense Home (RAK7204) is an LPWAN node that serves as an environmental monitoring station. The high-precision sensors, can measure changes in temperature, humidity, gas pressure, and provide an indoor air quality index.

All the accumulated data can be sent to a LoRaWAN® gateway in order for it to be forwarded to the Cloud.

Because of its design, WisNode Sense Home can achieve a very low power consumption rate, which with the included non-rechargeable battery allows for 2+ years of operation.

The firmware has built-in functionality that allows the user to adjust the sampling interval of the sensors and the transmission cycle.

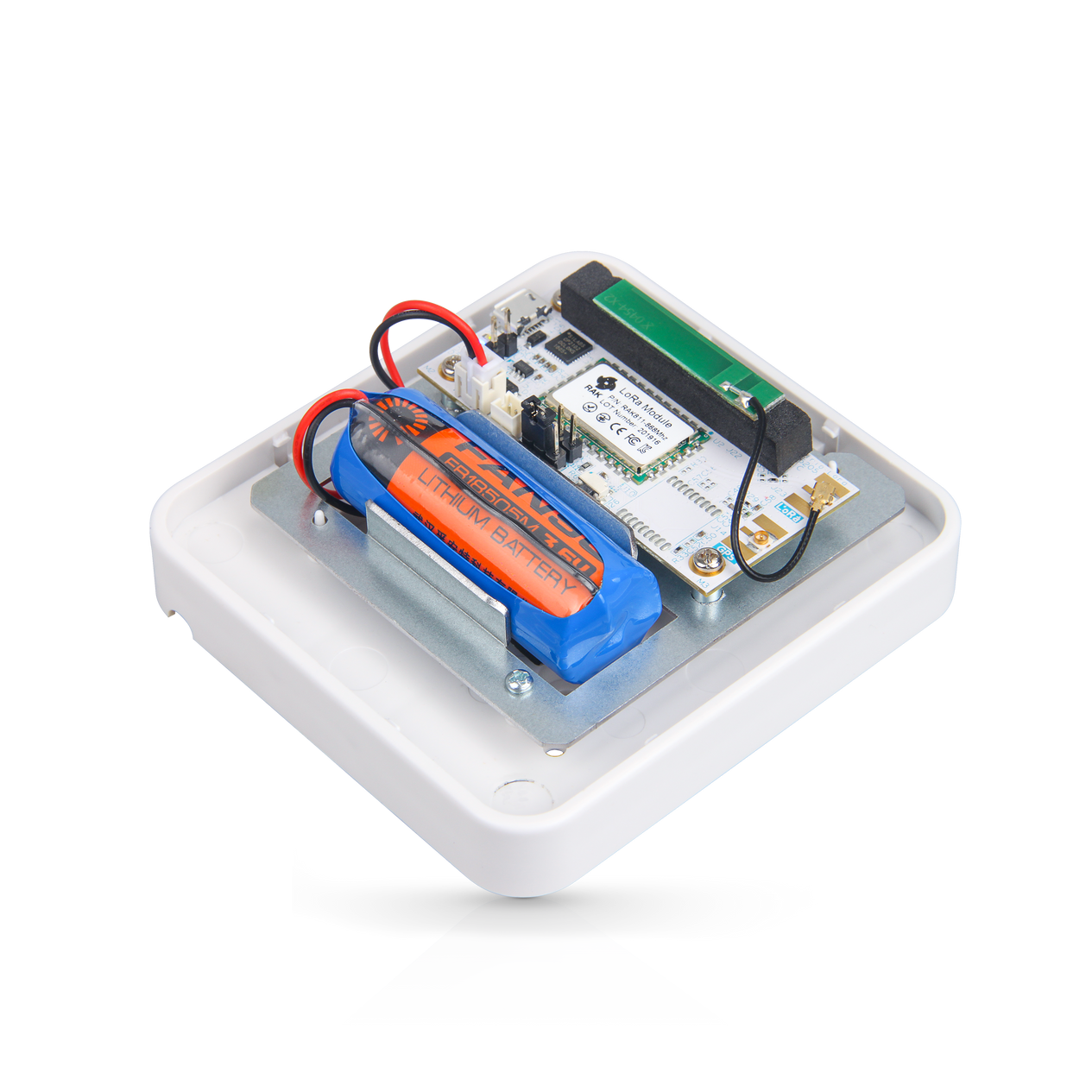

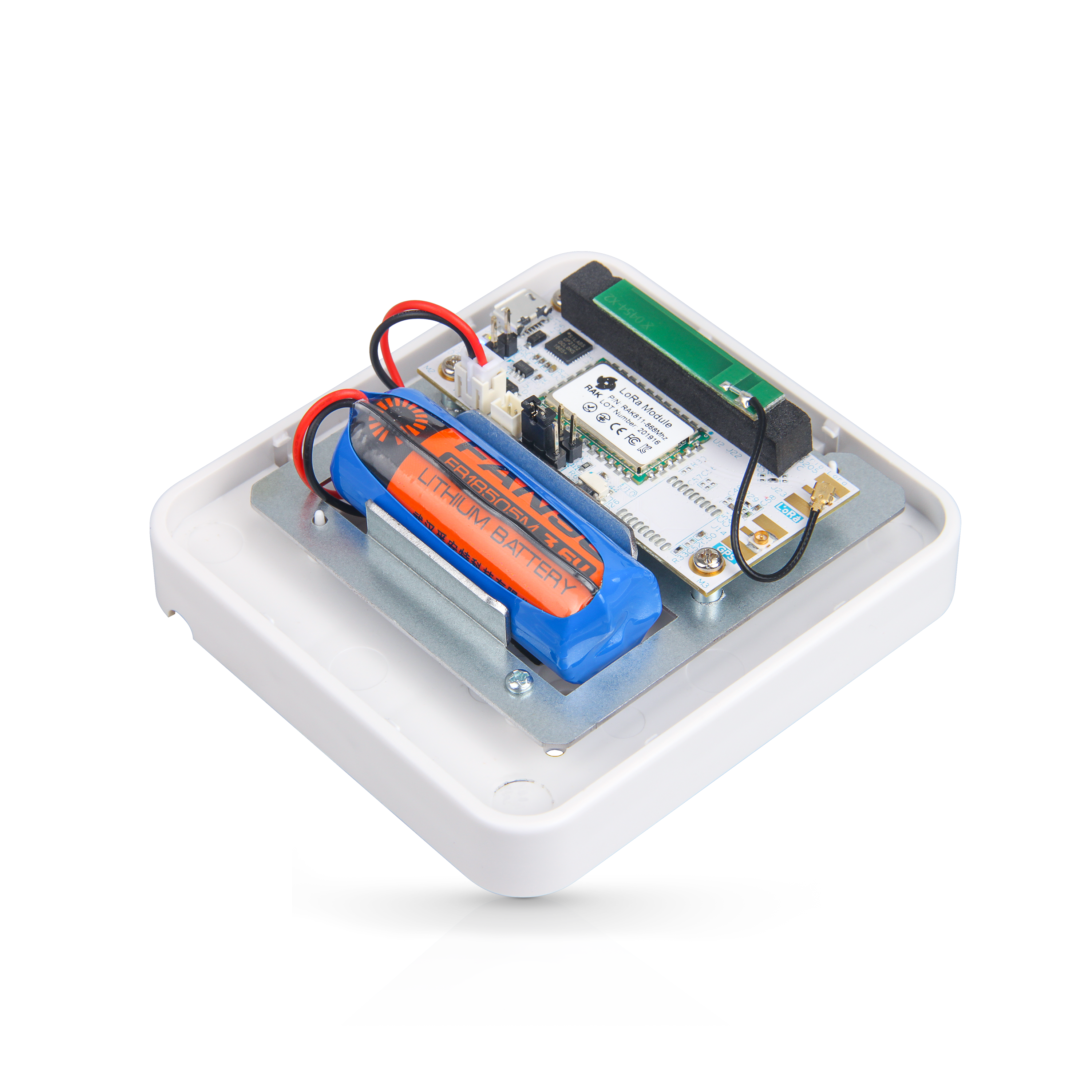

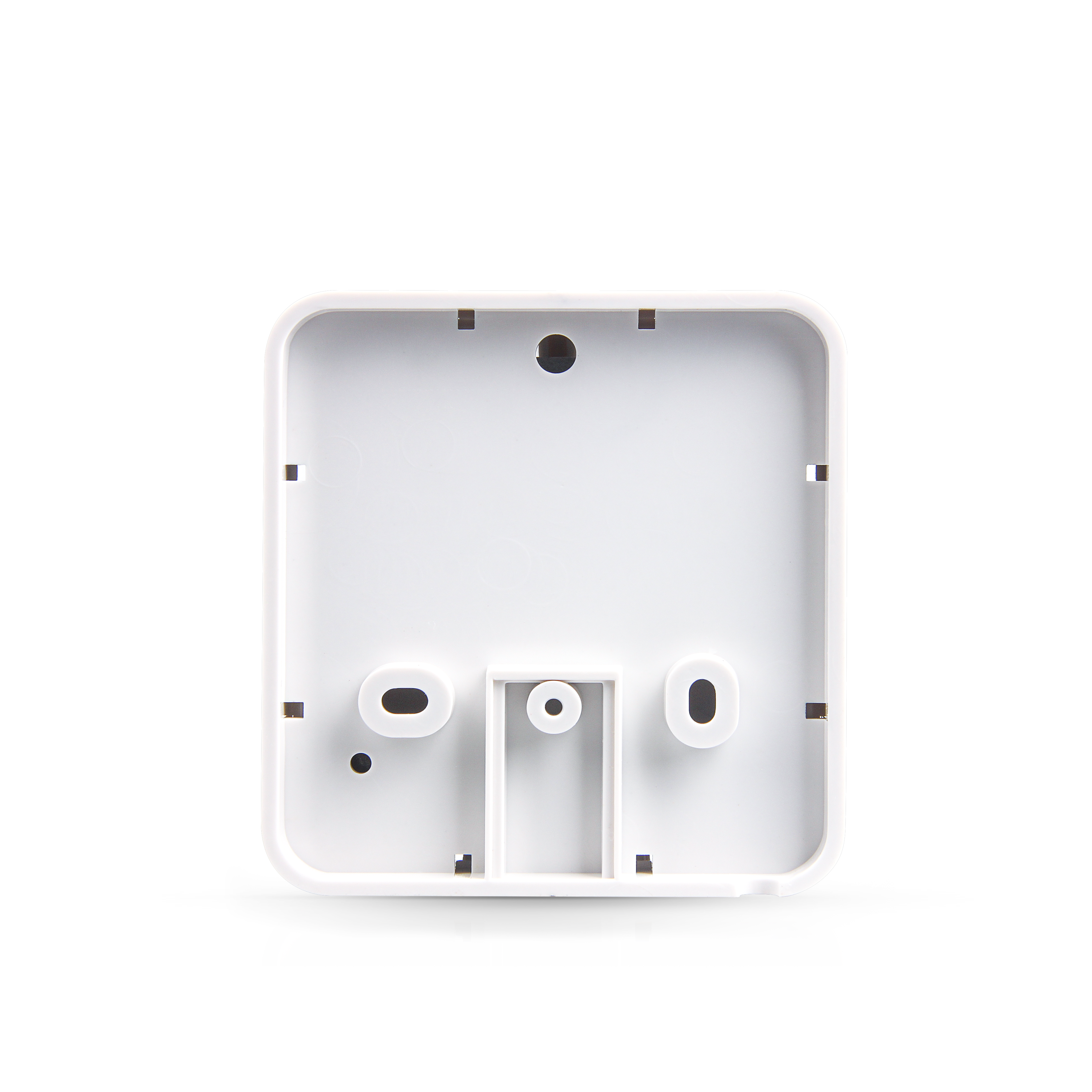

Last but not least, WisNode Sense Home adopts a highly integrated design, fitting the electronics and battery within 90mm x 85mm x 34mm casing.

Key Features

Measurement of a variety of environmental parameters

Temperature, Humidity, and Pressure

Sensor

BOSCH BME680 Integrated Environmental Unit

Compact size

Built-in LoRa® Antenna, swappable battery

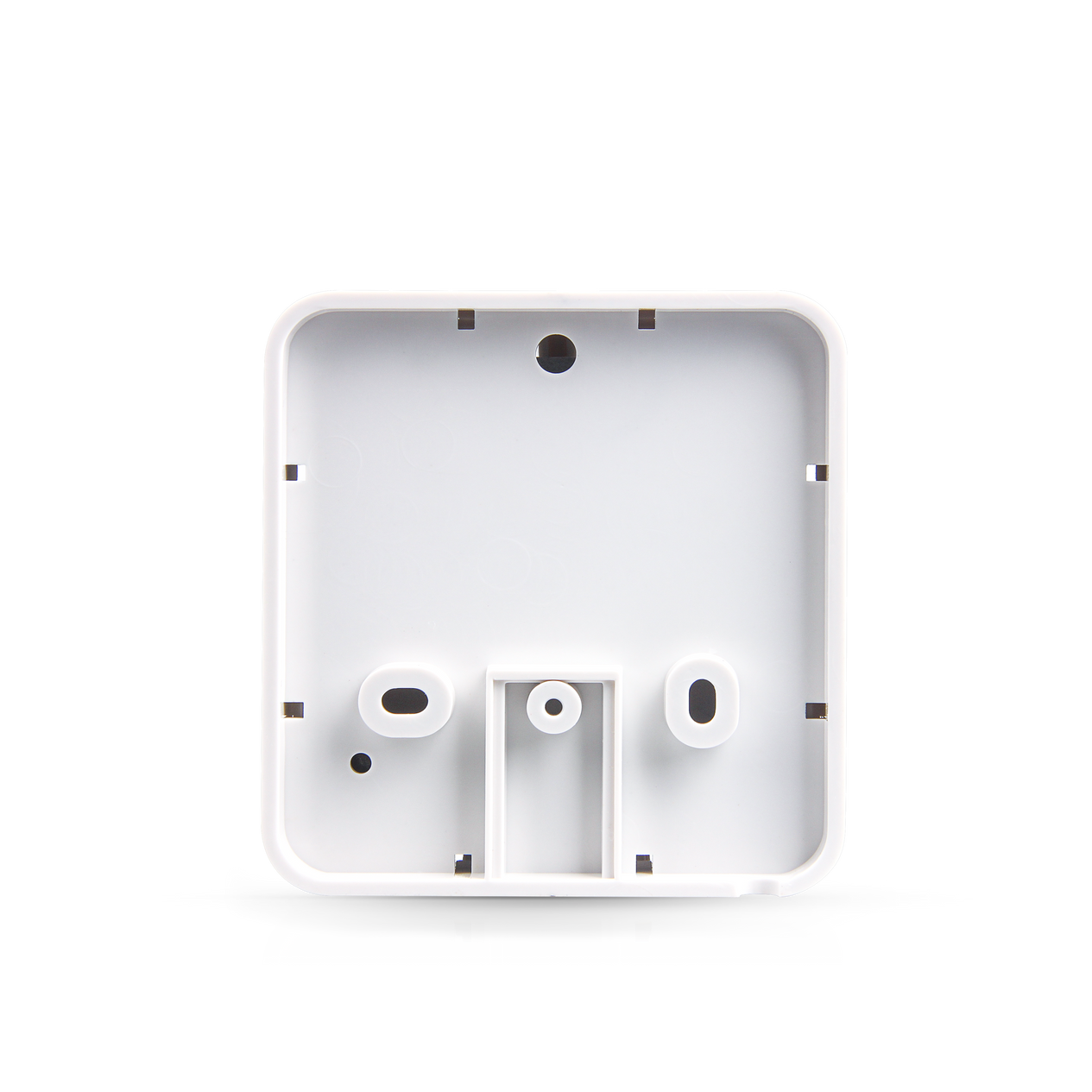

Easy to mount and maintain

Low power operation

Standby current of less than 15 uA
Adjustable sampling and transmission interval

Battery

Replaceable 3500 mAh high capacity lithium battery with a battery life of more than 2 years

LoRaWAN® 1.0.2 fully compliant

Specification

Working Temperature

Operating Temperature: -40ºC +25ºC +85ºC
Storage Temperature: -40ºC +25ºC +85ºC

Power Consumption

Standby Current: <15 uA
Current in Sensors Working Mode: <10 mA
Current in LoRa® Transmission Mode: <150 mA

Temperature Sensor Specifications

Temperature Range: -40ºC +25ºC +85ºC
Accuracy: 0.5ºC
Output Resolution: 0.01ºC

Humidity Sensor Specifications

Humidity Range: 0% r.H ~ 100 % r.H.
Accuracy: +-3% r.H.
Output Resolution: 0.008% r.H.

Gas Pressure Sensor Specifications

Range 300: hPa ~ 300 hPa
Accuracy: +-0.6 hPa
Output Resolution: 0.18 Pa.

IAQ Sensor Specifications

IAQ Range: 0 ~ 500
Accuracy: 15
Output Resolution: 1

Power Supply Battery Specifications

Nominal Battery Voltage: 3.6V
Battery Specification: ER18505
Nominal Capacity: 3500mAh
Temperature Range: -55ºC ~ 85ºC
Battery Dimensions: 18mm ~ 50.5mm

Documentation

RAK7204 WisNode Sense Home

Note :
1. The included battery is non-rechargeable. In case you need to plug in the Micro USB port for the purpose of configuring the node, the battery should stay plugged.

2. The pin distance of the battery connector is 2.0mm. When choosing a battery, attention should be paid to the consistency of positive and negative poles. Reverse connections or short circuits may damage the device and may cause overheating and combustion of the battery. Therefore, when replacing the battery, it is necessary to strictly confirm whether the positive and negative poles of the connector are correct.
