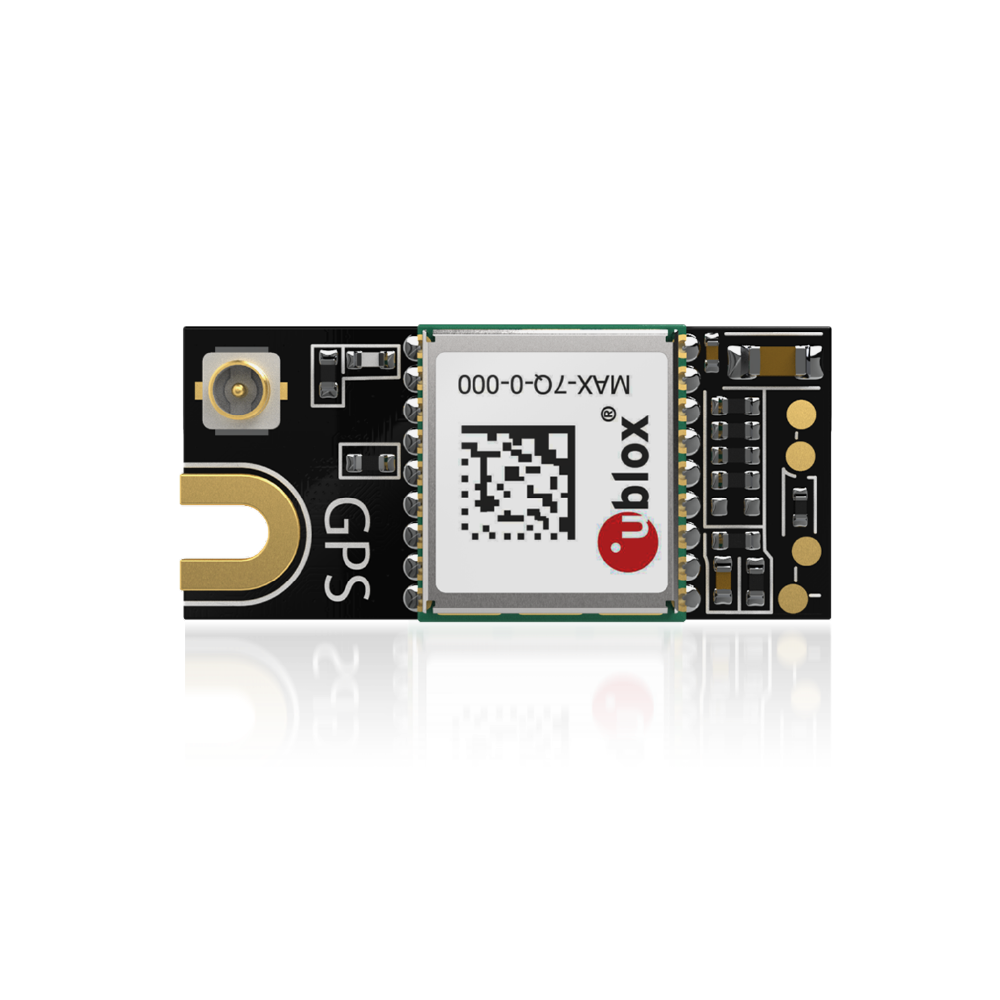

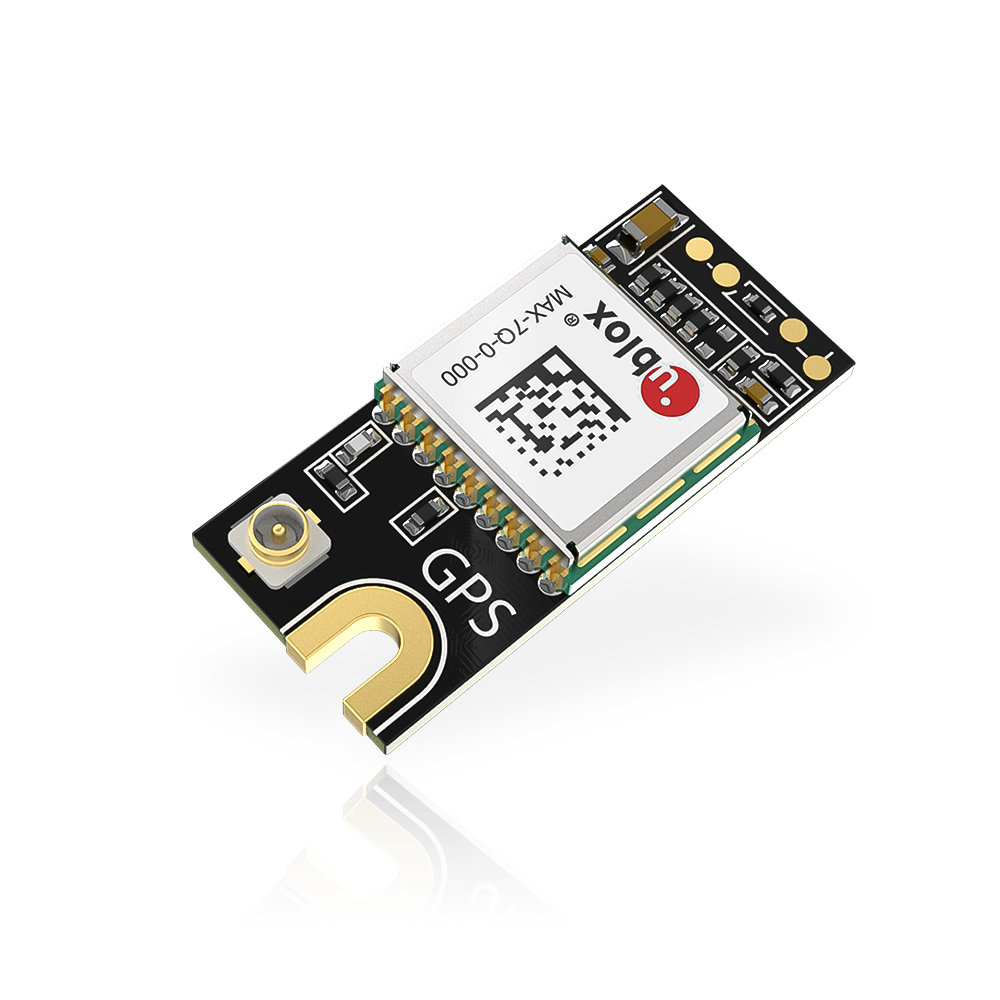

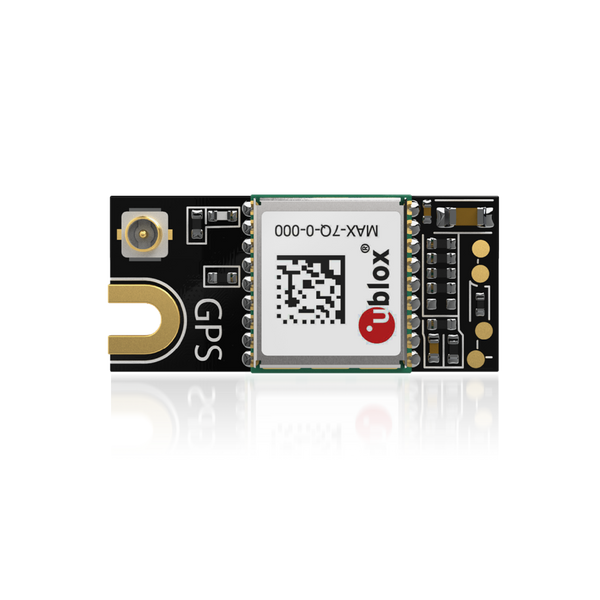

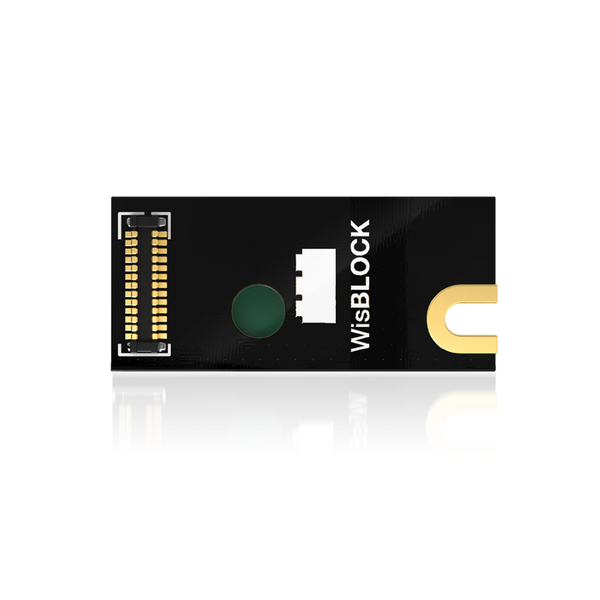

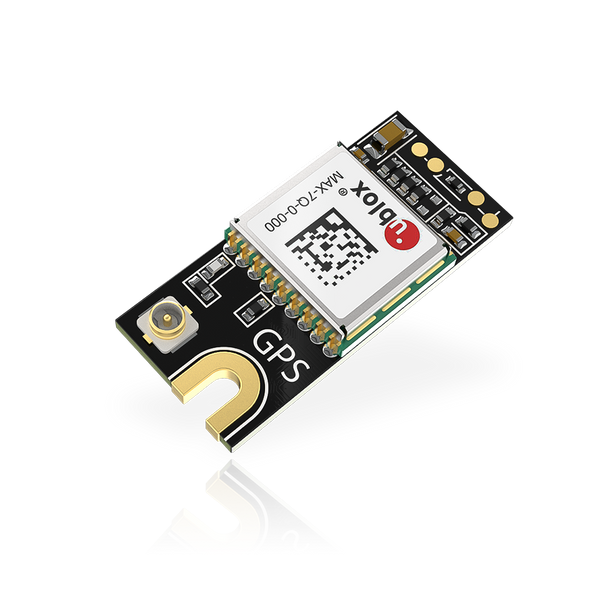

GNSS GPS Location Module u-Blox MAX-7Q

RAK1910

SKU:110007
$17.00 $0.00

Request Quote for Custom WisBlock Module
Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation

Product Description

The RAK1910 WisBlock GNSS/GPS Location Module is based on the u-blox MAX-7Q which extends the WisBlock system with tracking location capabilities. A ready to use SW library and tutorial makes it easy to build up a GPS based location tracker.

RAK1910 supports both GPS and GLONASS satellites for location acquisition. It can get a location ­x within 1 second and has a high accuracy of 2.5m in outdoor usage.

RAK1910 combined with the RAK4631 WisBlock Core is ready to go system for a GPS-based location tracker that can send location information using LoRaWan® communication, LoRa® point to point connections, and BLUETOOTH® Low Energy.

RAK1910 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module complete to reduce the power consumption of the system even more.

RAK1910 location sensor can be joined with other WisBlock sensors like an acceleration sensor or an environment sensor to collect additional data.

Key Features

  • Using the U-Blox MAX-7Q GPS module
  • GNSS support for GPS/QZSS and GLONASS
  • Low power consumption

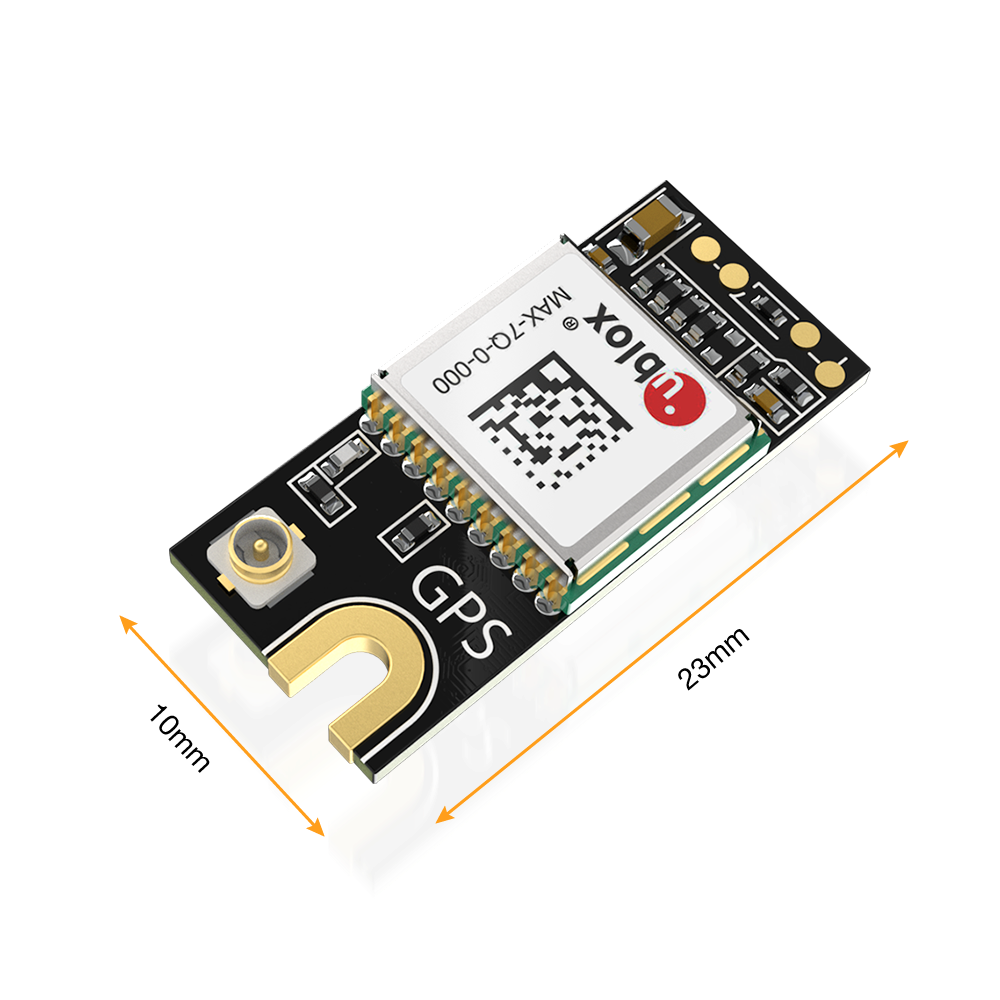

  • Small form factor
  • Fast location fix.
    • 29 s from cold start to first fix.
    • 1 s from hot start
  • High accuracy of 2.5m
  • 10Hz update rate
  • 1 m/s velocity accuracy
  • 5 degrees Heading accuracy

Package Inclusion

  • 1pc RAK1910

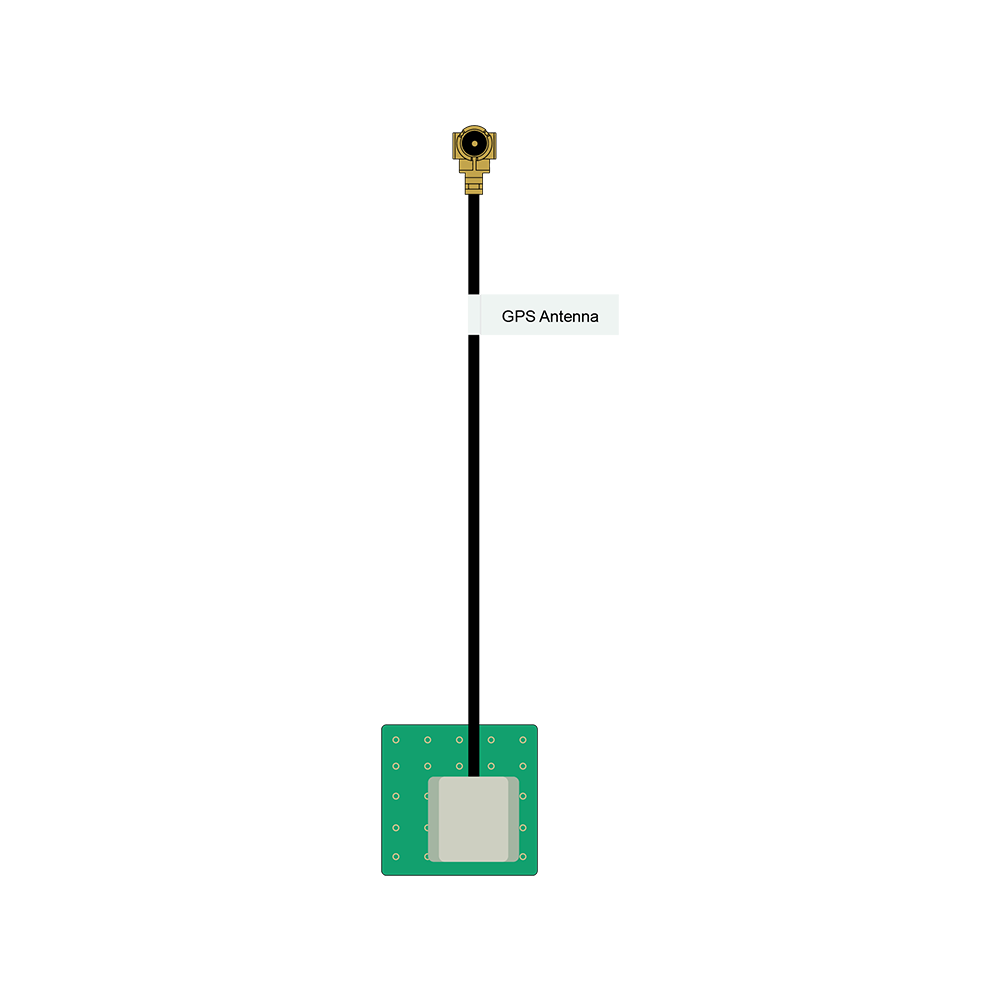

  • 1pc Active GPS Antenna
