DC Current Sensor 3A Texas Instruments INA219BID
RAK16000
Check our WisBlock Documentation
Product Description

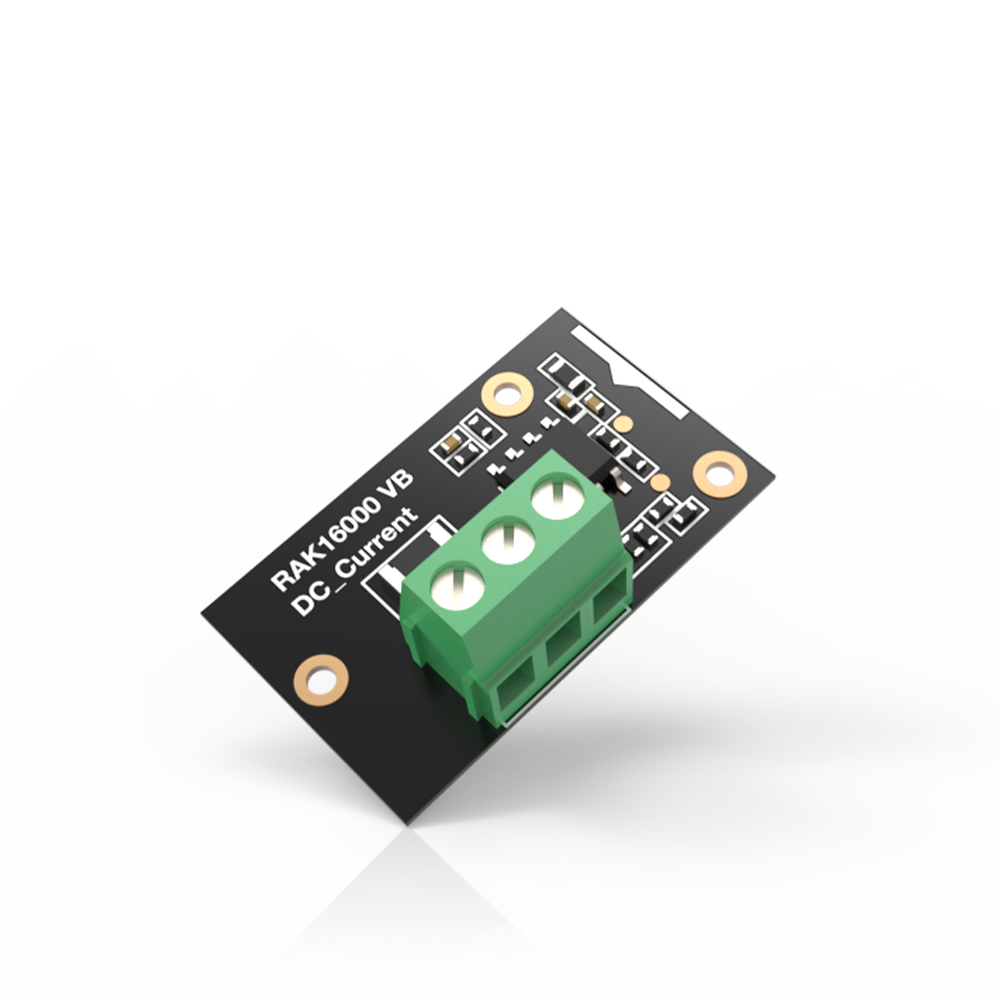

RAK16000 is a 3A DC Current Sensor based on Texas Instruments INA219BID. This module can measure DC current between 0 to 3A on a DC voltage of 0 to 26V. Multiply the voltage and current values and you can get the power consumption.
Product Features
- Texas Instrument INA219 sensor
- Measure DC voltage in the range of 0 to 26 V
- Measure DC current in the range of 0 to 3 A
- DC current has an accuracy of 0.5%
- 100mΩ shunt resistor can implement 0.1 mA Current_LSB
- I2C interface
- 3.3 V Power supply
- Module Size: 15 x 25 mm
