Inductive Sensor Texas Instruments LDC1614
RAK12029
Check our WisBlock Documentation
Product Description

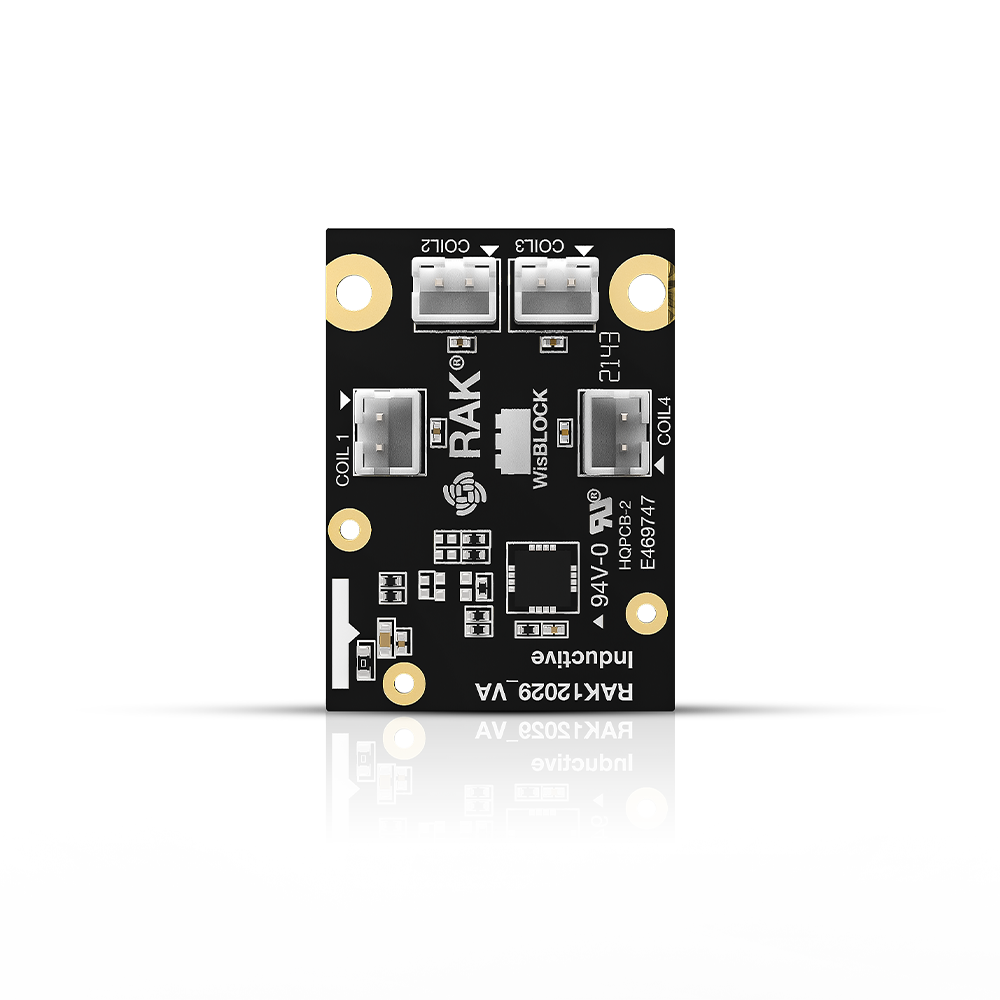

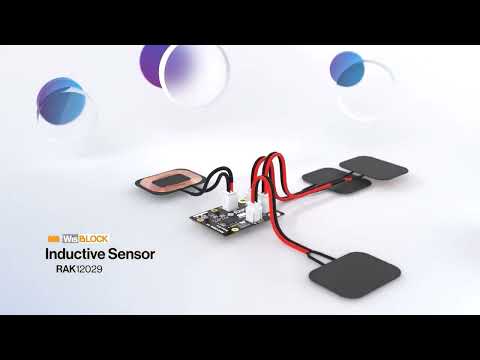

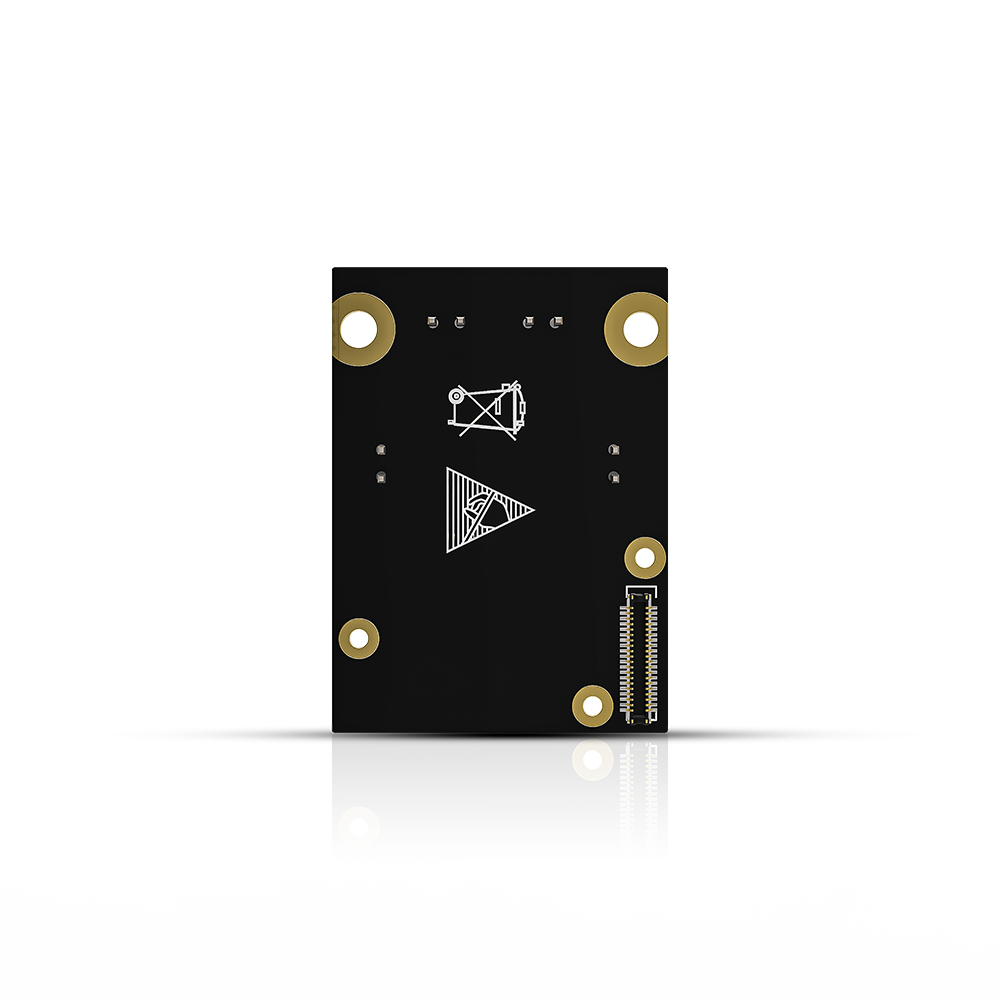

RAK12029 is a four channel metal detection sensor module based on Texas Instruments LDC1614 chip. The LDC1614 is an inductance-to-digital converter (LDC) that measures the oscillation frequency of up to four LC resonators. With this feature, you can detect the presence of metallic objects in different applications.
Features
- Metal detection module
- Sensing coils up to four channels
- 28-bit LDC
- Immunity to DC magnetic fields and magnets
- 3.3 V Power supply
- Module size: 25 x 35 m
Package Inclusion
- 1 pc RAK12029

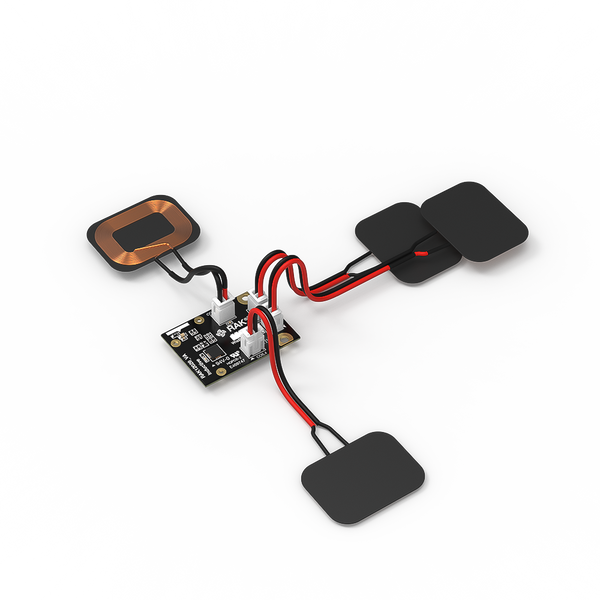

- 4 pcs Wireless coil patch
