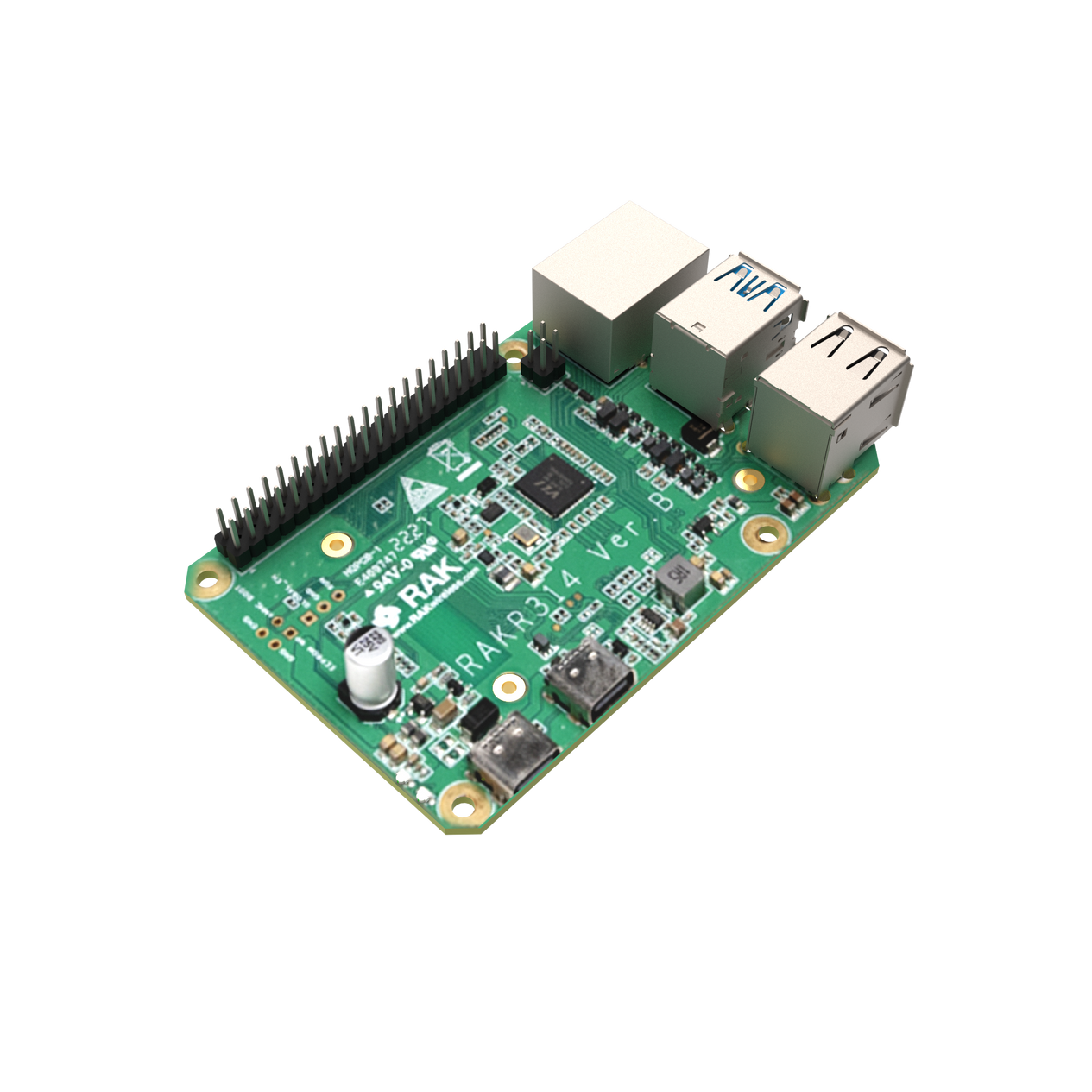

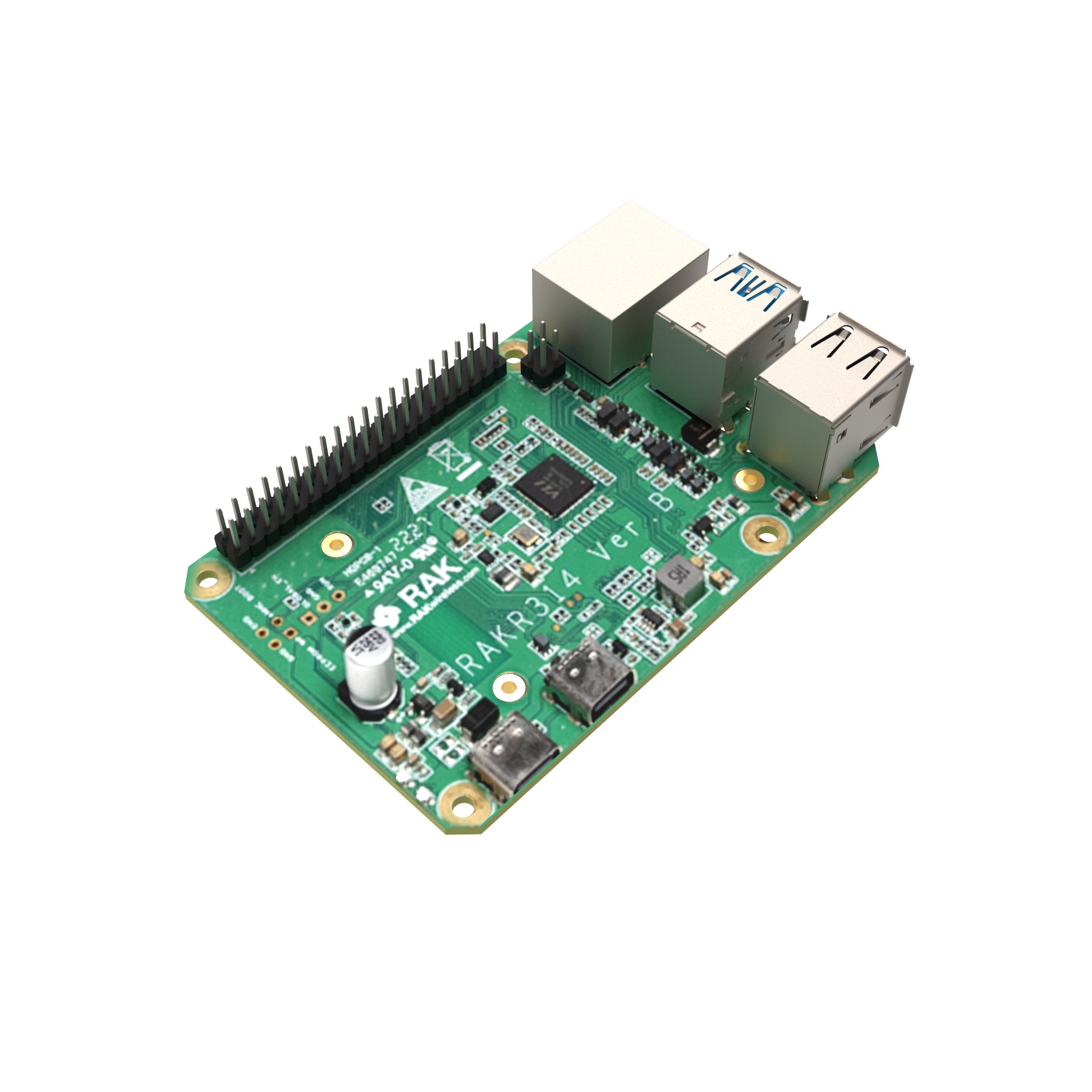

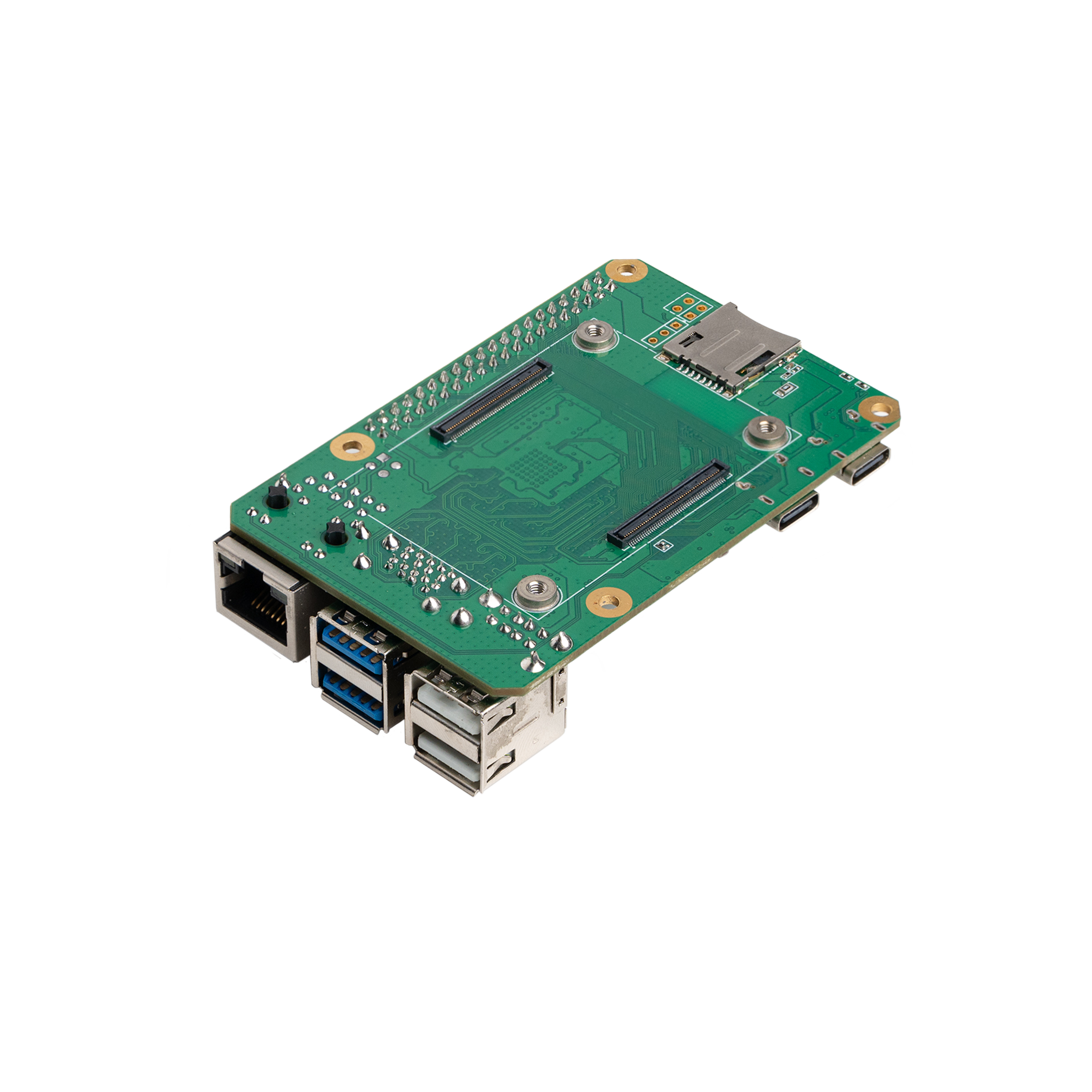

RAK Compute Module 4 (CM4) Carrier Board RAKR314
Description
RAKR314 carrier board is designed specifically for the Raspberry Compute Module CM4 following the Raspberry Pi4 form factor. This feature-packed board includes a standard 40 PIN GPIO and supports the RAK PoE HAT, making it an excellent choice for power-over-ethernet applications. With two USB 2.0 ports, two USB 3.0 ports, and two USB-type C ports (one for power and one for programming), and an Ethernet port, this board has all the connectivity options you need. Additionally, the SD card slot provides extra storage for the eMMC CM4 modules or serves as a main(boot) for non-eMMC modules. One of the best things about the RAKR314 is that it allows you to utilize the power of the CM4 module in the familiar Raspberry Pi form factor, so you can take advantage of all your existing HATs.
Key features
- Created for the Raspberry Pi CM4
- Raspberry Pi 4 form factor
- 2x USB2.0, 2xUSB3.0 Ports
- Ethernet connector
- PoE HAT support
- 40 PIN GPIO connector
- 2 type C ports (1 for power and 1 for programming the CM4)
- SD card slot
