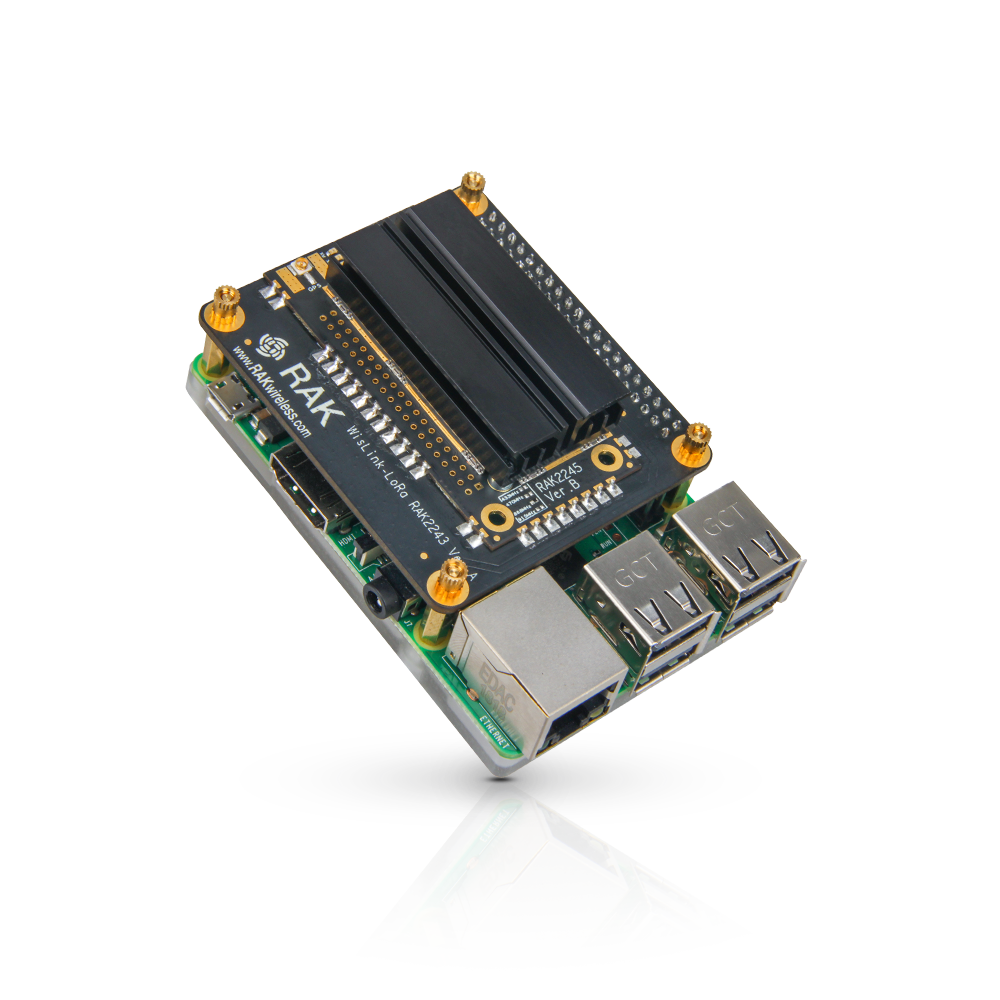

RAK Discover Kit

Product Description

The RAK Discover Kit is a complete LoRaWAN gateway solution. It comes pre-assembled, out of the box. You only need to flash the latest Firmware to have a fully functioning Gateway. It is quick to deploy and open to a developer (Raspbian based).

Complete documentation of this product can be found on its documentation page in our knowledge base.

Key Features

• Fully functioning LoRaWAN® Multichannel Concentrator module (SX1301)
• Tx Power up to 27dBm
• Rx Sensitivity down to -139dBm
• Improved noise resistance due to improved RF chain filtering (Additional SAW)
• Full LoRaWAN® 1.0.2 stack support
• Supported bands: (EU433, CN470, IN865, EU868, AU915, US915, KR920, AS920 and AS923)
• Integrated Ublox MAX-7Q GPs Module
• 40pin female header (fully compatible with Raspberry Pi)
• Redesigned heat sink for better thermal dissipation and reduced thermal noise
• Comes with a Raspberry Pi 3B+ the required antennas and an SD card.

Packaging

• Board Dimensions: 0 x 87.0 x 30.0mm
• Board Weight: Approximately 75g (2.6oz)
• Package Weight: 340g (12oz)

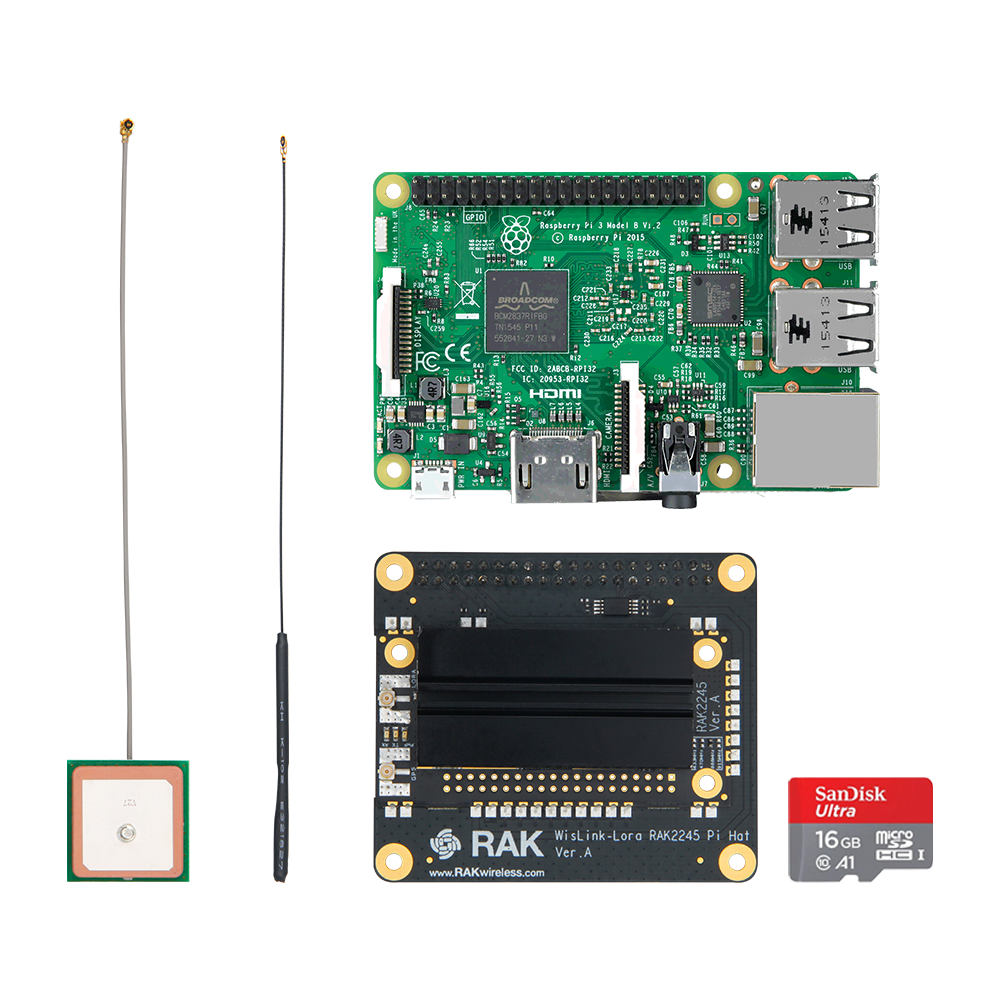

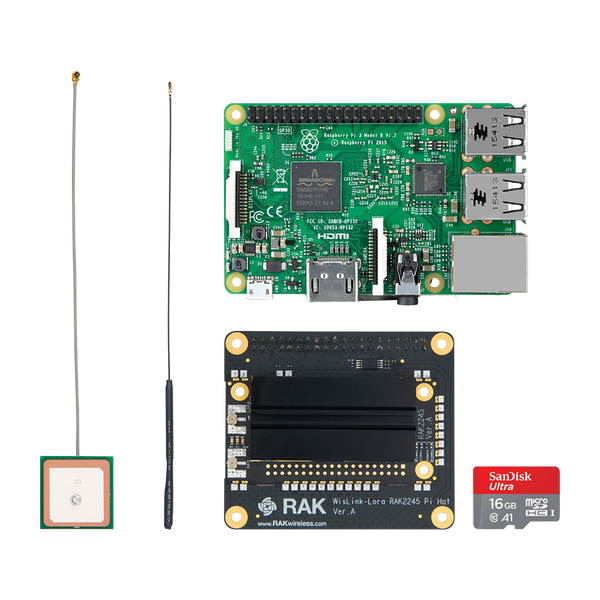

Package Inclusions

• RAK2245 Pi HAT Board
• Raspberry Pi 3B+
• LoRa® Antenna
• GPS Antenna
• SD card
