Pulsar Cable
RAK9731/RAK9732
Notice: New Product
Product Description
RAK9731

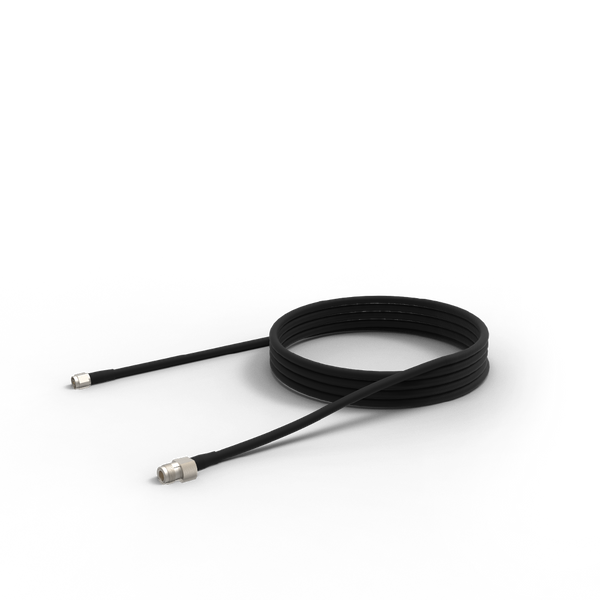

The Pulsar cable is a high-grade, low-loss cable, suitable for outdoor applications with WisGate Edge Prime, Max, and Pro (RAK7240, RAK7249, and RAK7289). This cable allows you to better position the gateway's antennas for optimal coverage.
Power loss
| Frequency | 1.5-m / 4.9-f Length | 3-m / 9.8-f Length | 5-m / 16.40-f Length | 10-m / 32.80-f Length |
|---|---|---|---|---|
| 433 - 435 MHz | ≤ 0.30 dB | ≤ 0.15 dB | ≤ 0.65 dB | ≤ 1.15 dB |
| 470 - 510 MHz | ≤ 0.35 dB | ≤ 0.50 dB | ≤ 0.70 dB | ≤ 1.20 dB |
| 863 - 870 MHz | ≤ 0.10 dB | ≤ 0.63 dB | ≤ 0.85 dB | ≤ 1.65 dB |
| 902 - 930 MHz | ≤ 0.15 dB | ≤ 0.65 dB | ≤ 0.90 dB | ≤ 1.70 dB |
Product Features
- RAK9731
- Cable length variants: 1.5 m, 3 m, 5 m, 10 m
- Connector: N-type male to N-type female
- Frequency Range: 0~6 GHz
- Cable type: LMR400
- VSWR: ≤ 1.5
