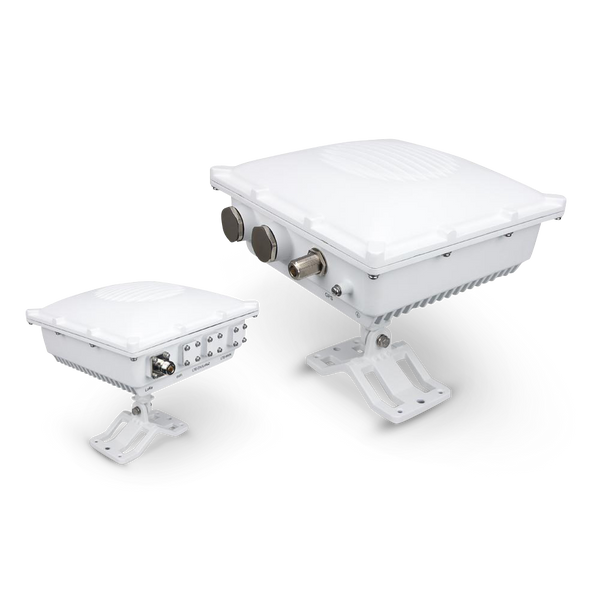

Outdoor Gateway Enclosure

Industrial Die-Cast Aluminum Design

Designed to withstand the toughest of environments, this enclosure is made of Industrial Die-Cast Aluminum. It is rated IP67/NEMA-6, making it completely protected from dust ingress and submergible up to 1m in water.

Complete documentation of this product can be found on our website documentation page.

Thermal Characteristics

• Enclosure seal operating temperature range: -60°C to 230°C
• Heat Trap: +6.5°C under full sun exposure (~ 100,000 Lux)
• Temperature raise using a 5-10W heat source: +5.5°C

Ports

• Ports For RAKBox-GW-1
• 5x N-Type Antenna connectors
• 1x Ethernet cable gland
• 1x Reserved port
• For RAKBox-GW-0
• 2x N-Type Antenna connectors

Supported Products

• WisGate Edge Max (RAK7249)
• RAK831 Concentrator Boards
• RAK7243C Pilot Gateway

Packaging

• Product Dimensions: 450mm x 300mm x 150mm
• Product Weight: 3400g
• Inclusions:

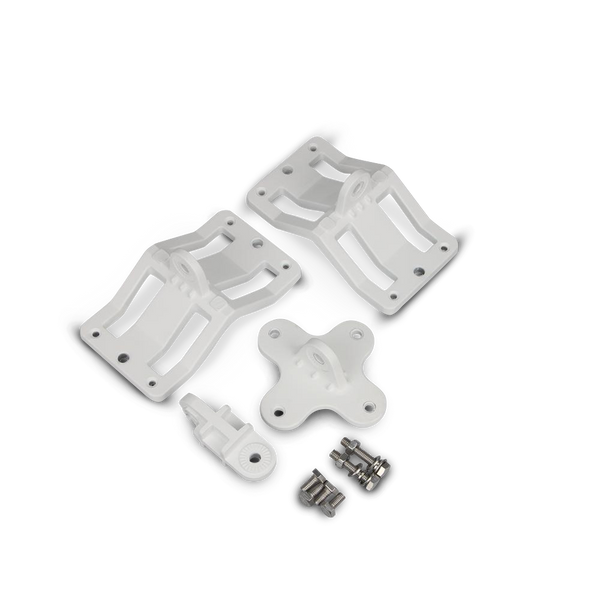

  • Enclosure together with connectors
  • The full assembly kit is included
